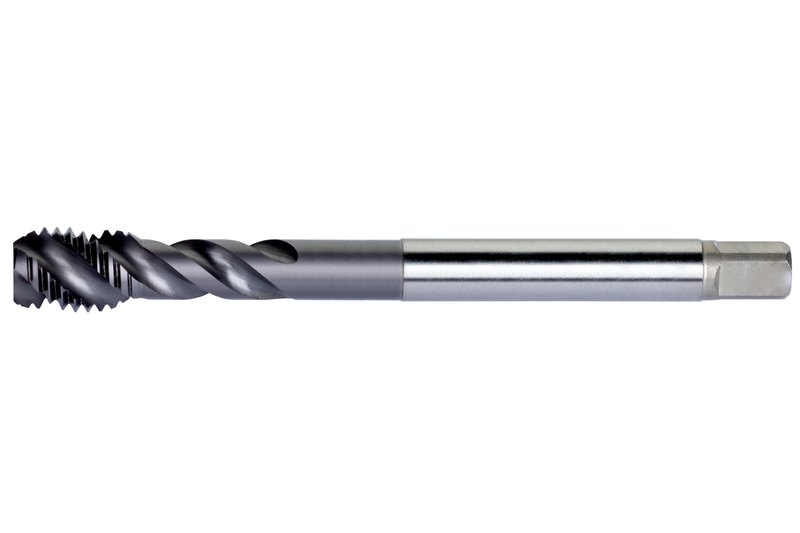

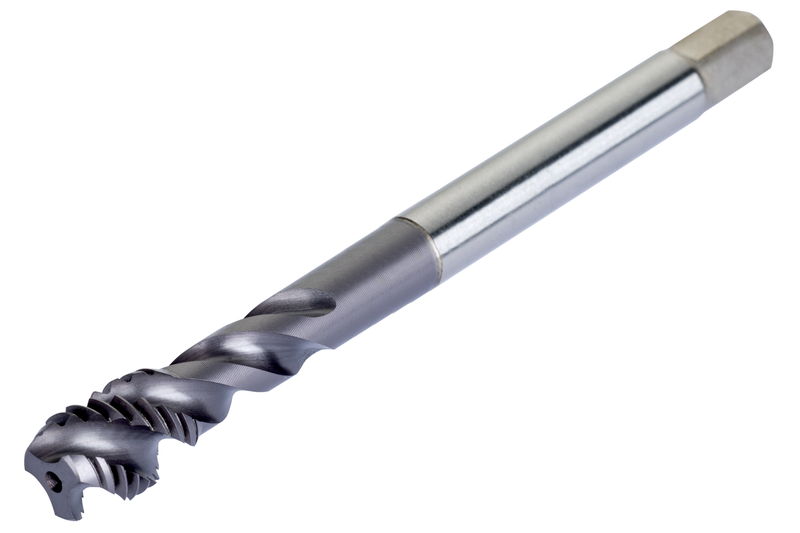

E398M30
E398M30
E398M30

E398M30

UGC DOR8464195
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$205.44 CAD - $205.44 CAD
$205.44 CAD
$205.44 CAD - $205.44 CAD
$205.44 CAD

Vendu en lots de : 1

Taille du filetage M30 mm x 3,5 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 75 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M30
GradeTiCN
Product Number8464195
Product FamilyE398(M)
Dimensions
Overall Length — in (OAL)7.087"
Overall Length — mm (OAL)180.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.866"
Connection Dia. — mm (DCON)22.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)30
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)3.5 mm
Thread Pitch — in (TP)0.138"
Tool Information
Direction of ToolD'accord
StandardDIN 371 LE 10, DIN 376 GE 12
Reference Numbers
EDP Number8464195
EAN3603607095362
File Type Download
E398M30 — Line Drawing PDF Download
