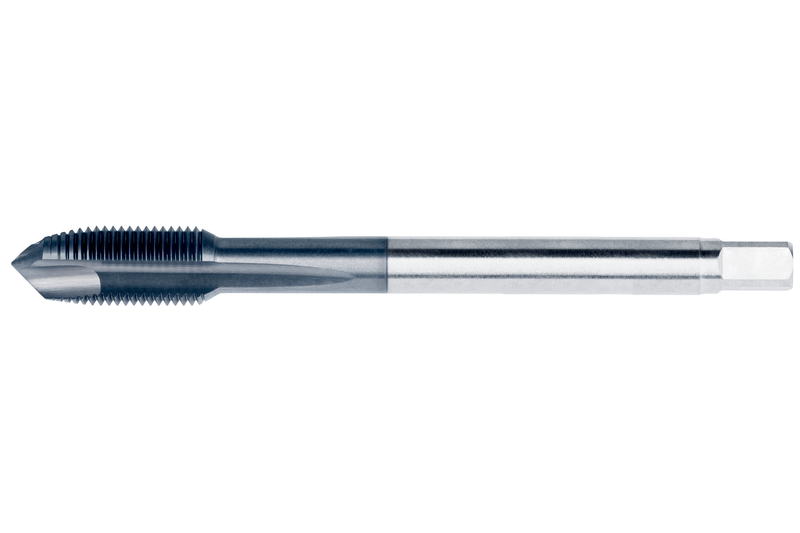

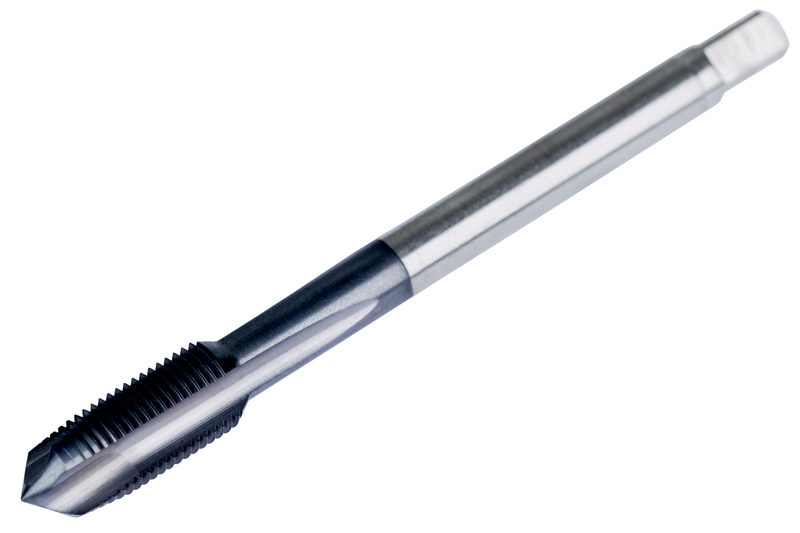

UGC DOR8464196
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.39 CAD - $26.39 CAD
$26.39 CAD
$26.39 CAD - $26.39 CAD
$26.39 CAD

Vendu en lots de : 1

Filetage MF8 mm x 1 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale 20 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397M8X1.0
GradeTiCN
Product Number8464196
Product FamilyE397(MF)

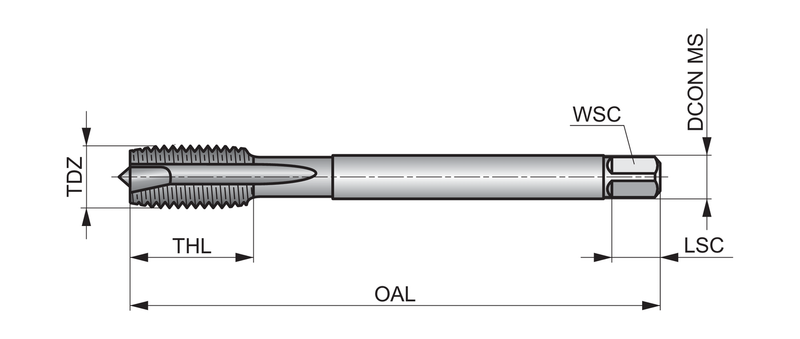

Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464196
EAN3603607095379
File Type Download
E397M8X1.0 — Line Drawing PDF Download
