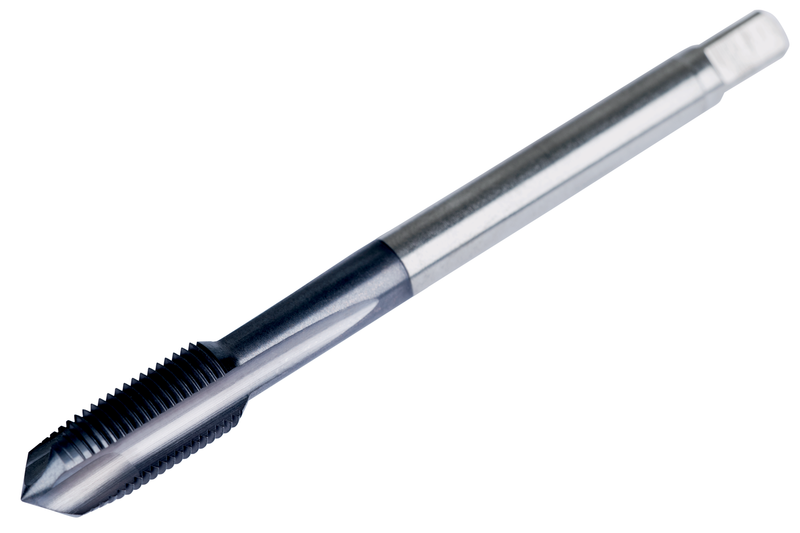

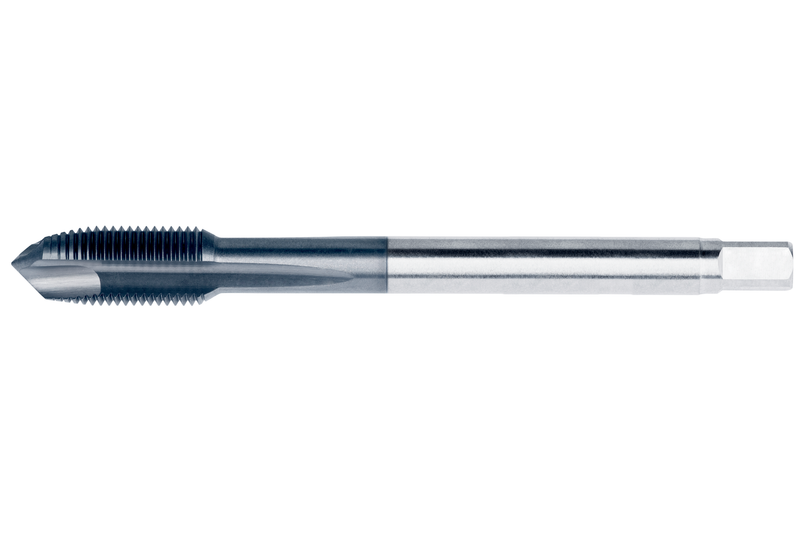

E397M12X1.0
E397M12X1.0
E397M12X1.0

E397M12X1.0

UGC DOR8464199
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$43.33 CAD - $43.33 CAD
$43.33 CAD
$43.33 CAD - $43.33 CAD
$43.33 CAD

Vendu en lots de : 1

Taille du filetage MF12 mm x 1 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 30 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI)E397M12X1.0
Product Name (ISO)E397M12X1,0
GradeTiCN
Product Number8464199
Product FamilyE397(MF)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.354"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Métrique fin
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464199
EAN3603607095409
File Type Download
E397M12X1.0 — Line Drawing PDF Download
