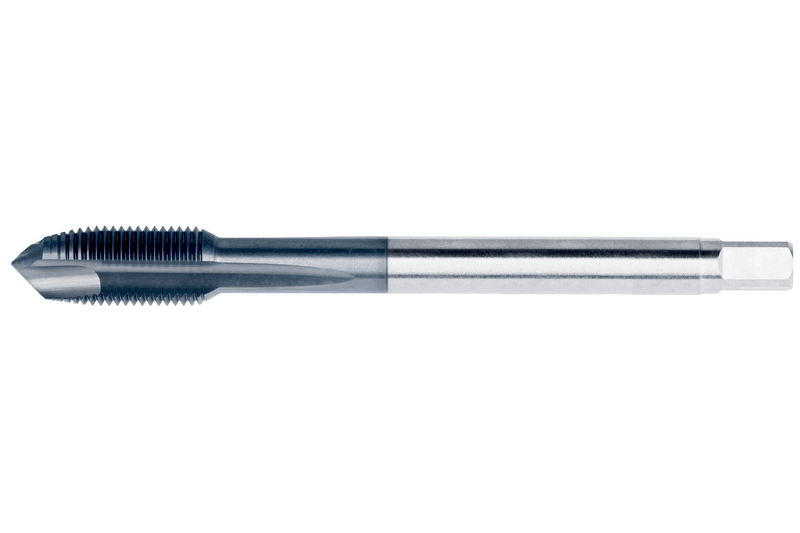

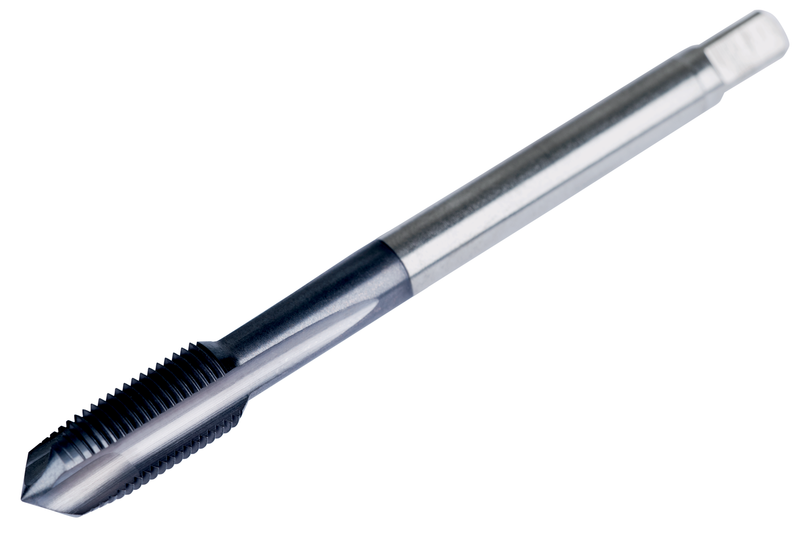

E397M16X1.5
E397M16X1.5
E397M16X1.5

E397M16X1.5

UGC DOR8464203
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$52.67 CAD - $52.67 CAD
$52.67 CAD
$52.67 CAD - $52.67 CAD
$52.67 CAD

Vendu en lots de : 1

Filetage MF16 mm x 1,5 mm, avec une tolérance de filetage de classe 93707, et une profondeur de filetage maximale de 40 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI)E397M16X1,5
Product Name (ISO)E397M16X1.5
GradeTiCN
Product Number8464203
Product FamilyE397(MF)

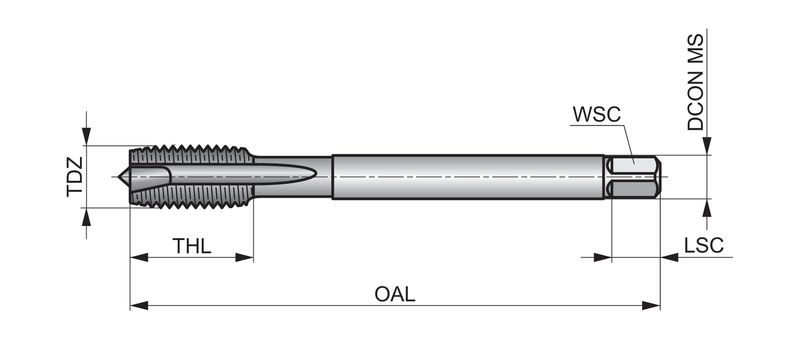

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.472"
Connection Dia. — mm (DCON)12.0 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)MF - Mètre fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464203
EAN3603607095447
File Type Download
E397M16X1.5 — Line Drawing PDF Download
