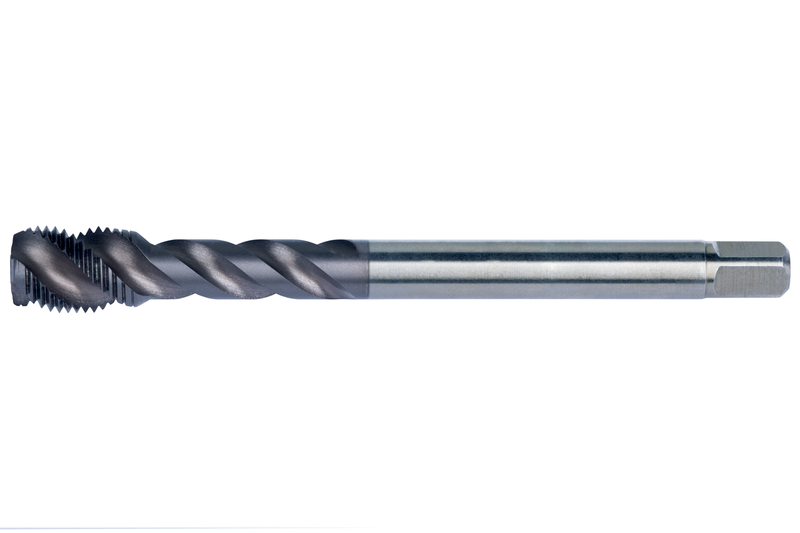

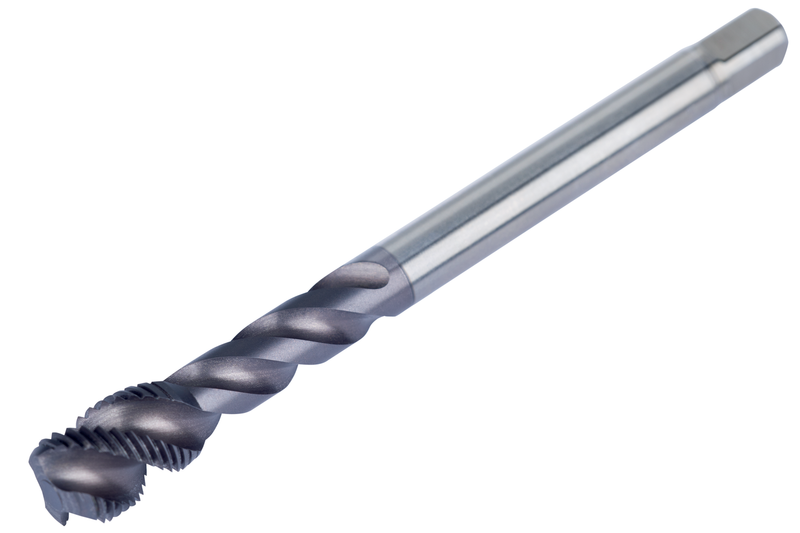

E398M8X1.0
E398M8X1.0
E398M8X1.0

E398M8X1.0

UGC DOR8464205
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.20 CAD - $29.20 CAD
$29.20 CAD
$29.20 CAD - $29.20 CAD
$29.20 CAD

Vendu en lots de : 1

Pas de vis MF8 mm x 1 mm, avec une tolérance de filetage de classe 93707, et une profondeur de filetage maximale de 20 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M8X1.0
GradeTiCN
Product Number8464205
Product FamilyE398(MF)

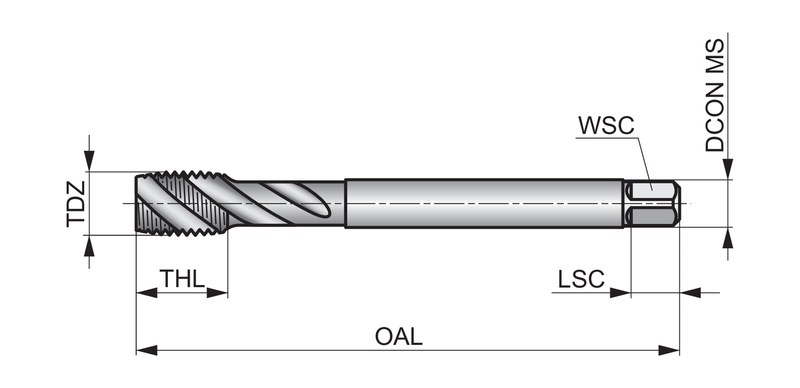

Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464205
EAN3603607095461
File Type Download
E398M8X1.0 — Line Drawing PDF Download
