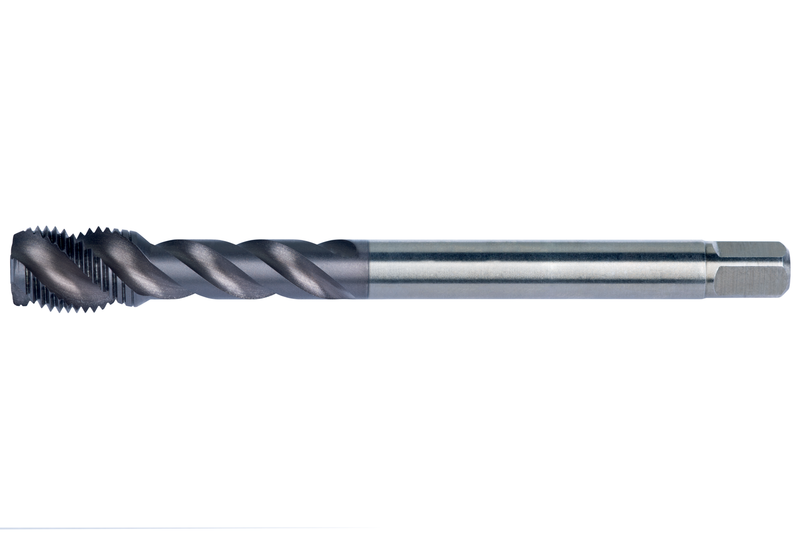

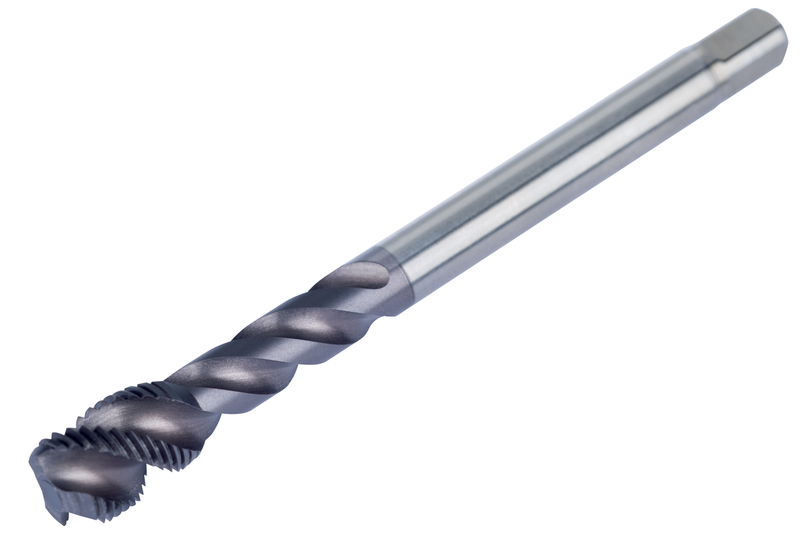

E398M10X1.25
E398M10X1.25
E398M10X1.25

E398M10X1.25

UGC DOR8464207
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$36.97 CAD - $36.97 CAD
$36.97 CAD
$36.97 CAD - $36.97 CAD
$36.97 CAD

Vendu en lots de : 1

Taille du filetage MF10 mm x 1,25 mm, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 25 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398M10X1.25
GradeTiCN
Product Number8464207
Product FamilyE398(MF)

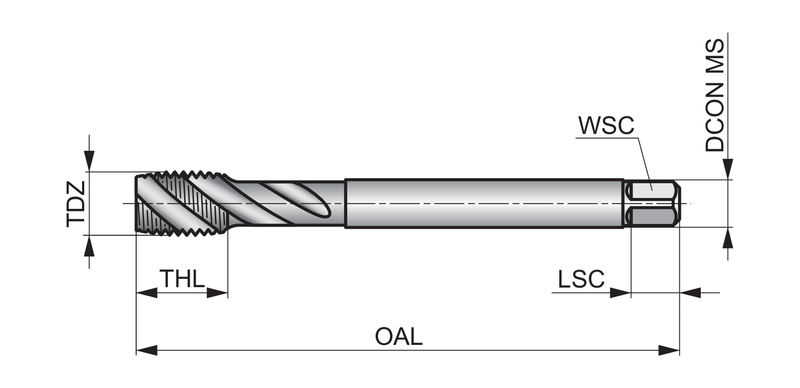

Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.276"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.049"
Tool Information
Direction of ToolD'accord
StandardDIN 374
Reference Numbers
EDP Number8464207
EAN3603607095485
File Type Download
E398M10X1.25 — Line Drawing PDF Download
