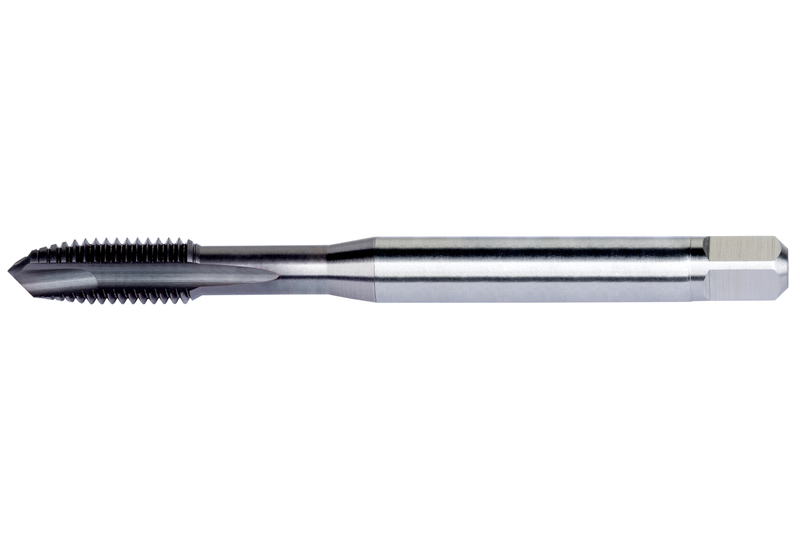

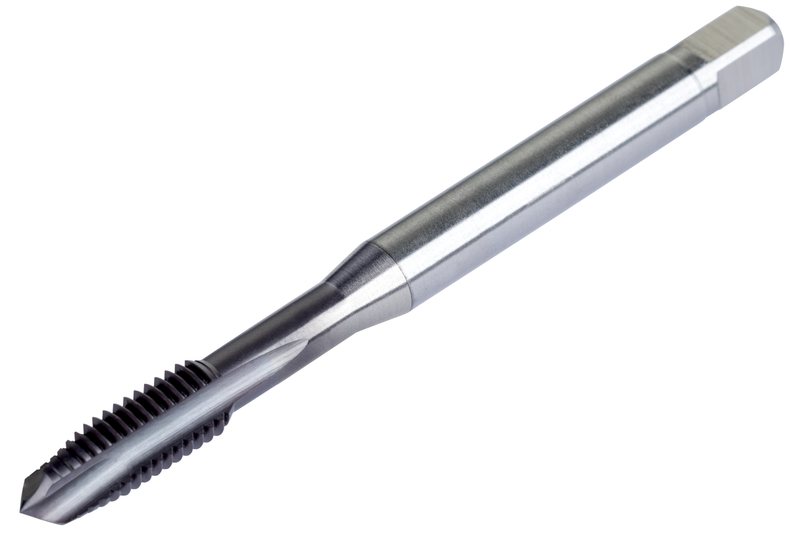

E397UNC8X32
E397UNC8X32
E397UNC8X32

E397UNC8X32

UGC DOR8464214
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.60 CAD - $19.60 CAD
$19.60 CAD
$19.60 CAD - $19.60 CAD
$19.60 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,164 pouce - 32 TPI, avec une tolérance de filetage de classe 93707 et une profondeur de filetage maximale de 0,41 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397UNC8X32
GradeTiCN
Product Number8464214
Product FamilyE397(SAI)
Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)63.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.0 mm
Connection Dia. — in (DCON)0.177"
Connection Dia. — mm (DCON)4.5 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — in (TD)0.164"
Thread Diameter — mm (TD)4.166 mm
Thread Form (THFT)GSE - Granulométrie superficielle étendue
Threads per Inch (TPI)32.0
Tool Information
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number8464214
EAN3603607095553
File Type Download
E397UNC8X32 — Line Drawing PDF Download
