E397UNC10X24
E397UNC10X24
E397UNC10X24

E397UNC10X24

UGC DOR8464215
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.76 CAD - $20.76 CAD
$20.76 CAD
$20.76 CAD - $20.76 CAD
$20.76 CAD

Vendu en lots de : 1

Diamètre de filetage UNC 0,19 pouce - 24 filets par pouce, avec une tolérance de filetage de classe 93707 et une profondeur de filetage maximale de 0,475 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397UNC10X24
GradeTiCN
Product Number8464215
Product FamilyE397(NC)
Dimensions
Overall Length — in (OAL)2.756"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.984"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.236"
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — in (TD)0.19"
Thread Diameter — mm (TD)4.826 mm
Thread Form (THFT)UCL - Unifié Coarse
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number8464215
EAN3603607095560
File Type Download

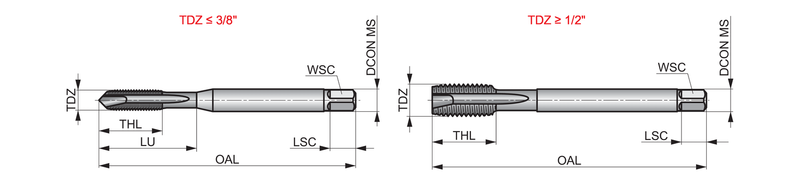

E397UNC10X24 — Line Drawing PDF Download
