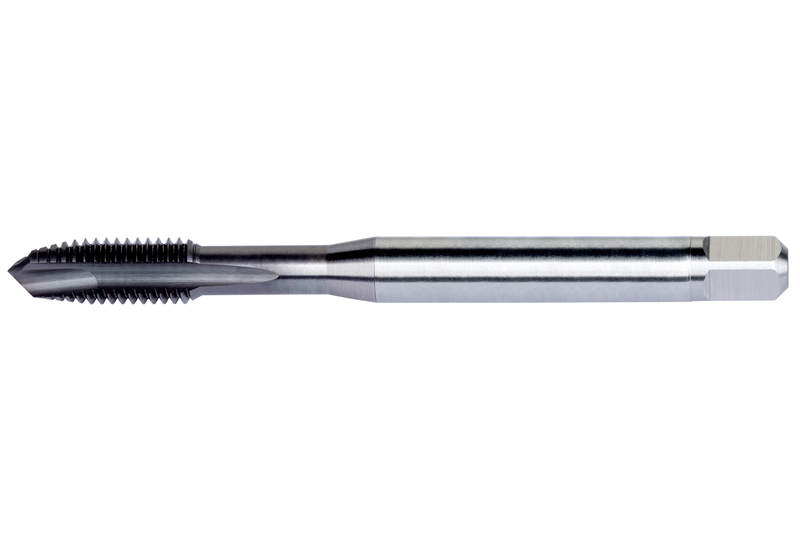

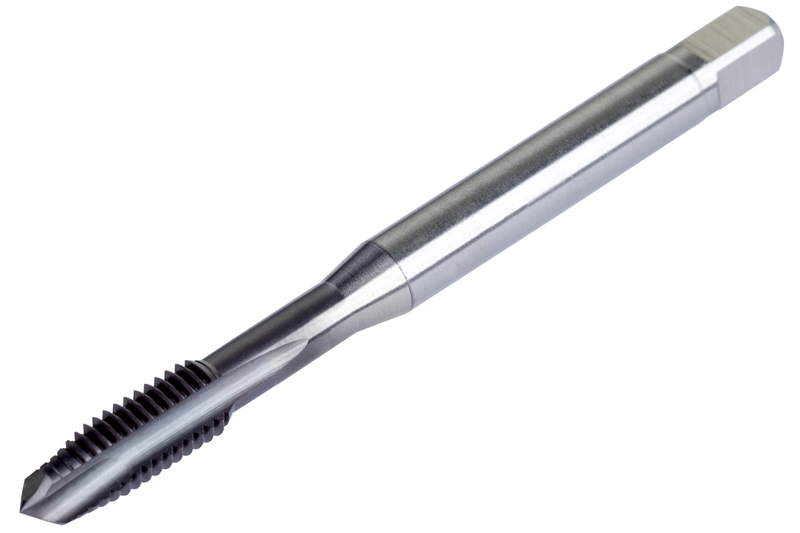

E397UNC3/8
E397UNC3/8
E397UNC3/8

E397UNC3/8

UGC DOR8464218
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.10 CAD - $29.10 CAD
$29.10 CAD
$29.10 CAD - $29.10 CAD
$29.10 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,375 pouce - 16 filets par pouce, avec une tolérance de filetage de classe 93707 et une profondeur de filetage maximale de 0,9375 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397UNC3/8
GradeTiCN
Product Number8464218
Product FamilyE397 (Non classé)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.394"
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Diameter — in (TD)0.375"
Thread Diameter — mm (TD)9.525 mm
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)16.0
Tool Information
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number8464218
EAN3603607095591
File Type Download
E397UNC3/8 — Line Drawing PDF Download
