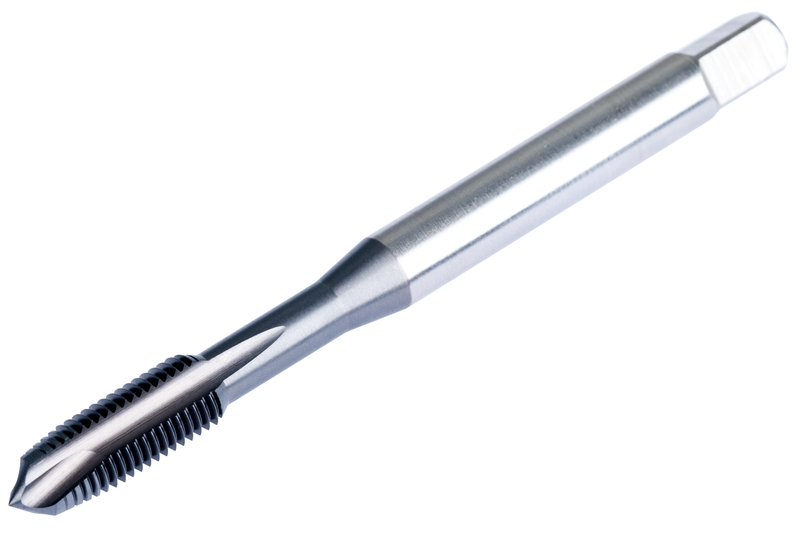

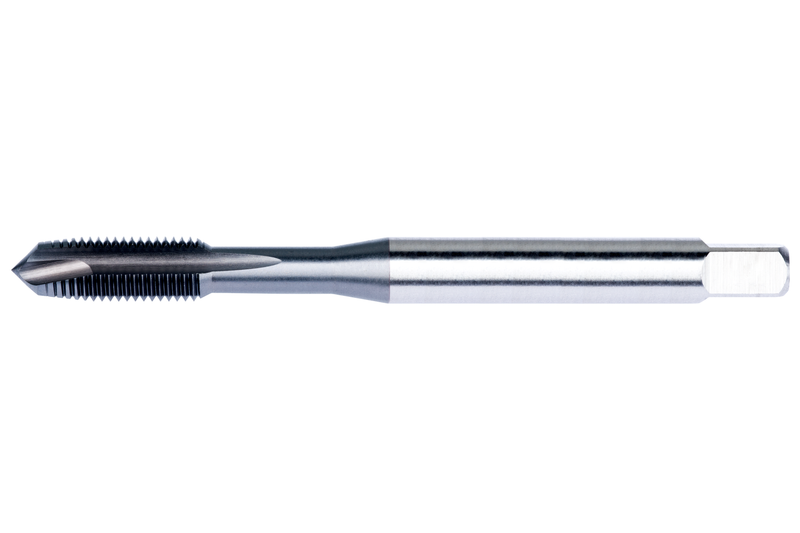

E397UNF1/4
E397UNF1/4
E397UNF1/4

E397UNF1/4

UGC DOR8464226
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.89 CAD - $22.89 CAD
$22.89 CAD
$22.89 CAD - $22.89 CAD
$22.89 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,25 pouce - 28 TPI, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 0,625 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E397UNF1/4
GradeTiCN
Product Number8464226
Product FamilyE397(UNF)
Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.181"
Usable Length — mm (LU)30.0 mm
Connection Dia. — in (DCON)0.276"
Connection Dia. — mm (DCON)7.0 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/4
Thread Diameter — in (TD)0.25"
Thread Diameter — mm (TD)6.35 mm
Thread Form (THFT)UNF - Unifié fin
Threads per Inch (TPI)28.0
Tool Information
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number8464226
EAN3603607095676
File Type Download
E397UNF1/4 — Line Drawing PDF Download
