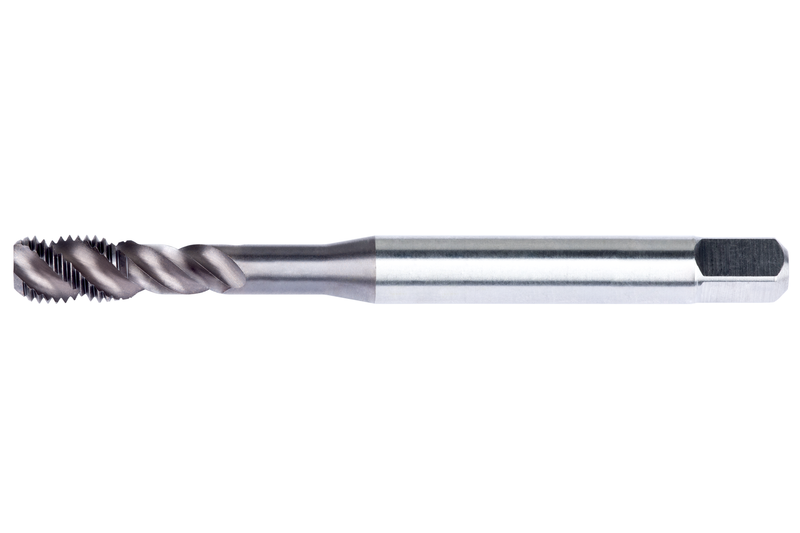

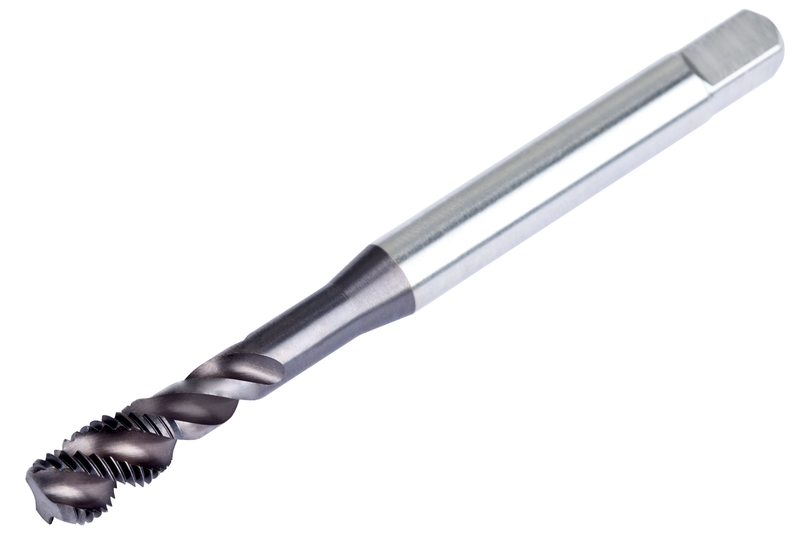

E398UNF1/2
E398UNF1/2
E398UNF1/2

E398UNF1/2

UGC DOR8464233
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$45.31 CAD - $45.31 CAD
$45.31 CAD
$45.31 CAD - $45.31 CAD
$45.31 CAD

Vendu en lots de : 1

Taille du filetage UNF 0,5 pouce - 20 TPI, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 1,25 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E398UNF1/2
GradeTiCN
Product Number8464233
Product FamilyE398(FNU)
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.354"
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — in (TD)0.5"
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)UNF - Pas fin uni
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardDIN 2184-1
Reference Numbers
EDP Number8464233
EAN3603607095744
File Type Download
E398UNF1/2 — Line Drawing PDF Download
