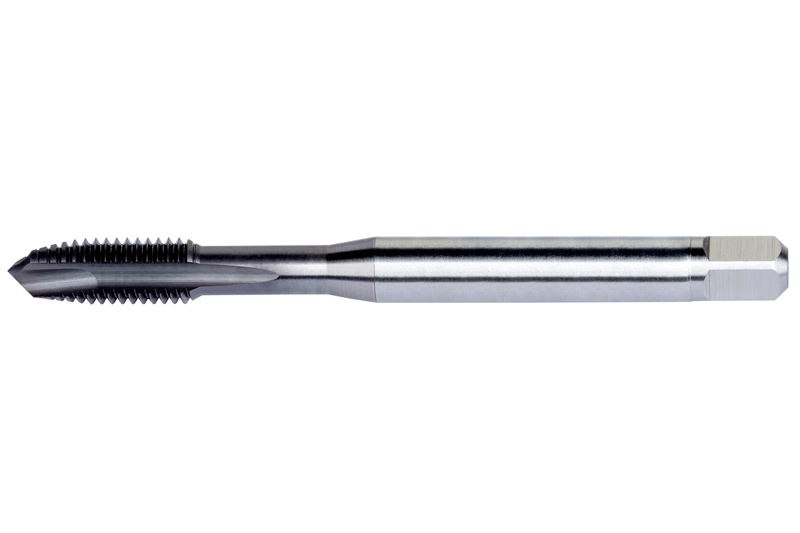

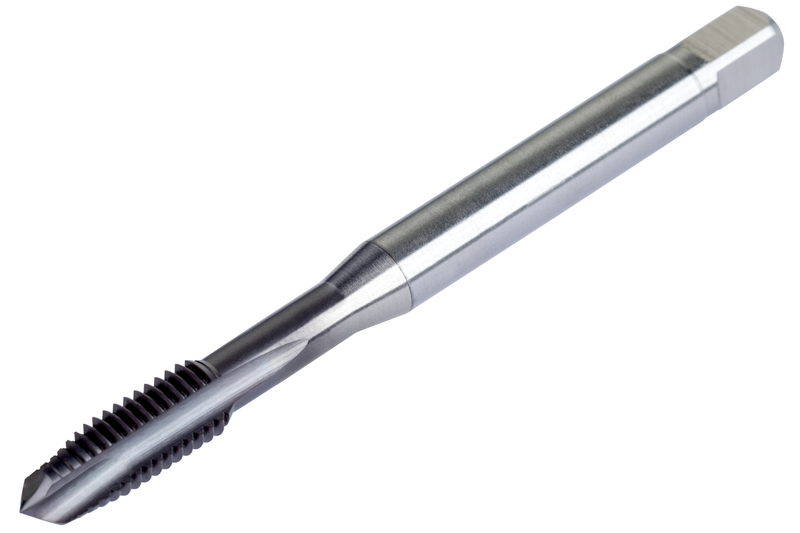

E697M5
E697M5
E697M5

E697M5

UGC DOR8464236
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$21.36 CAD - $21.36 CAD
$21.36 CAD
$21.36 CAD - $21.36 CAD
$21.36 CAD

Vendu en lots de : 1

Filetage M5 mm x 0,8 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 12,5 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697M5
GradeTiCN
Product Number8464236
Product FamilyE697(M)
Dimensions
Overall Length — in (OAL)2.756"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.984"
Usable Length — mm (LU)25.0 mm
Connection Dia. — in (DCON)0.194"
Connection Dia. — mm (DCON)4.93 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)5
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.8 mm
Thread Pitch — in (TP)0.031"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464236
EAN3603607095775
File Type Download
E697M5 — Line Drawing PDF Download
