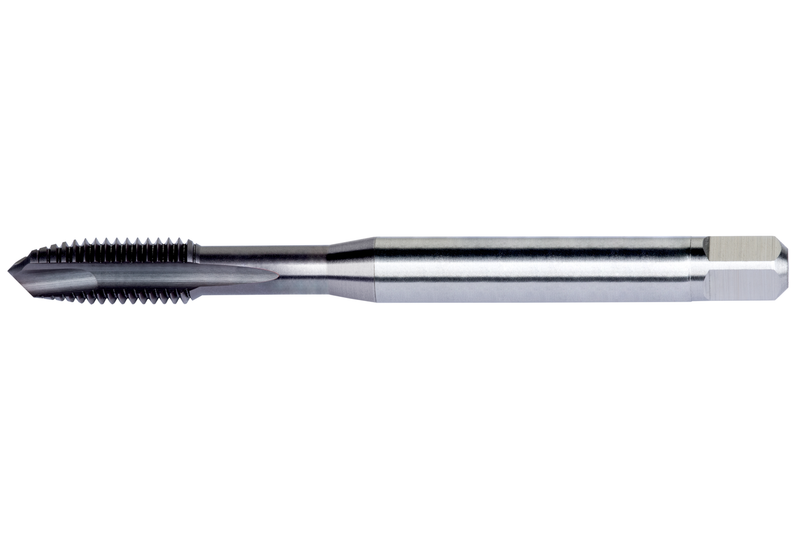

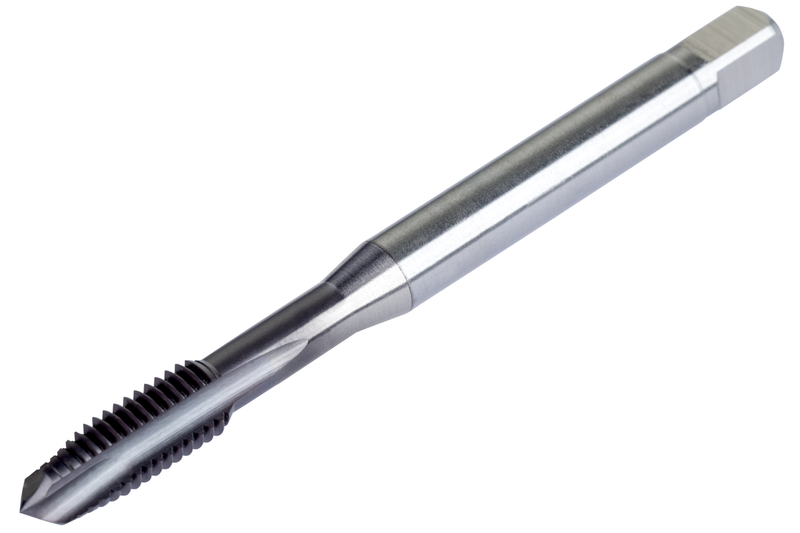

E697M10
E697M10
E697M10

E697M10

UGC DOR8464239
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$30.03 CAD - $30.03 CAD
$30.03 CAD
$30.03 CAD - $30.03 CAD
$30.03 CAD

Vendu en lots de : 1

Taille du filetage M10 mm x 1,5 mm, avec une classe de tolérance de filetage 93707 et une profondeur de filetage maximale de 25 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697M10
GradeTiCN
Product Number8464239
Product FamilyE697(M)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464239
EAN3603607095805
