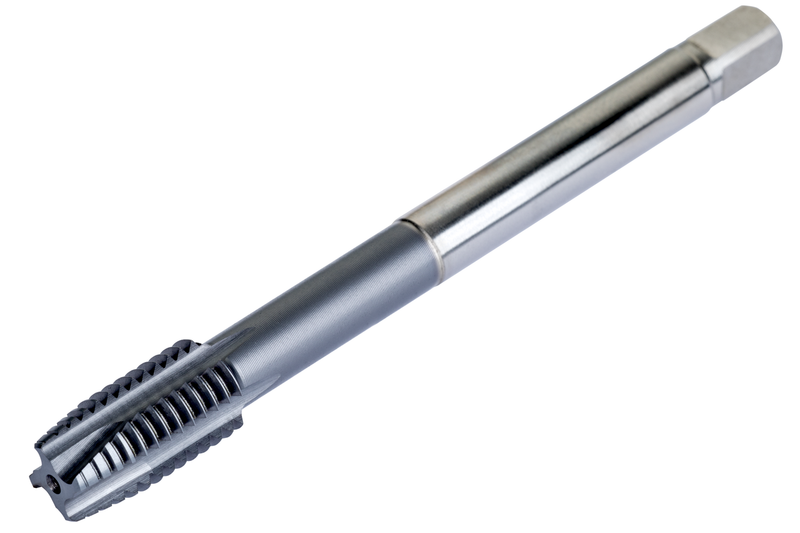

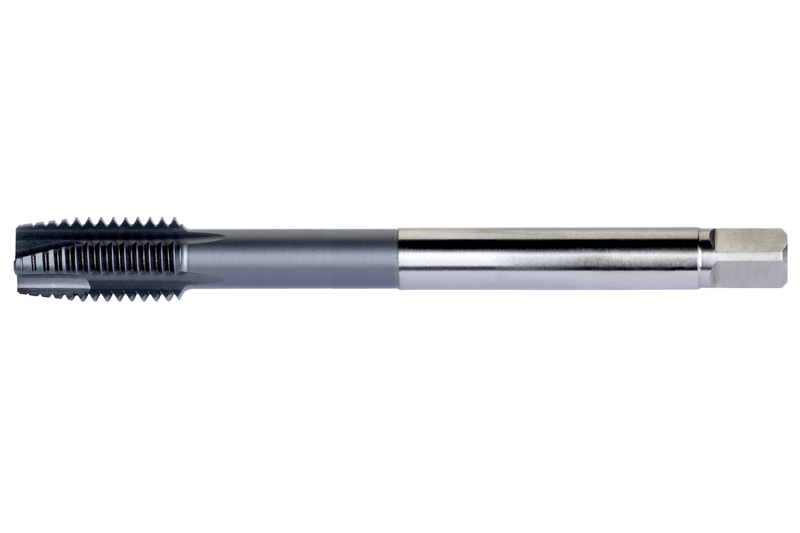

E697M16
E697M16
E697M16

E697M16

UGC DOR8464241
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$54.76 CAD - $54.76 CAD
$54.76 CAD
$54.76 CAD - $54.76 CAD
$54.76 CAD

Vendu en lots de : 1

Taille du filetage M16 mm x 2 mm, avec classe de tolérance de filetage 93707 et profondeur de taraudage maximale de 40 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697M16
GradeTiCN
Product Number8464241
Product FamilyE697(M)
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.48"
Connection Dia. — mm (DCON)12.19 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)16
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)2.0 mm
Thread Pitch — in (TP)0.079"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464241
EAN3603607095829
File Type Download
E697M16 — Line Drawing PDF Download
