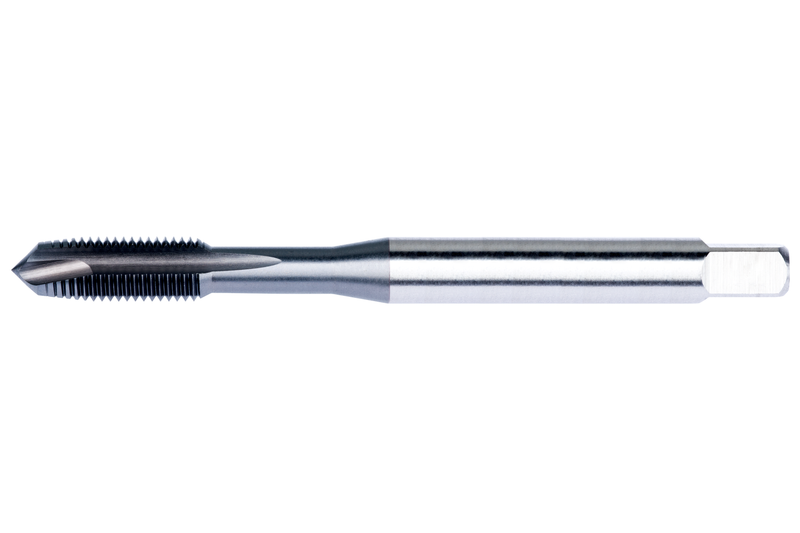

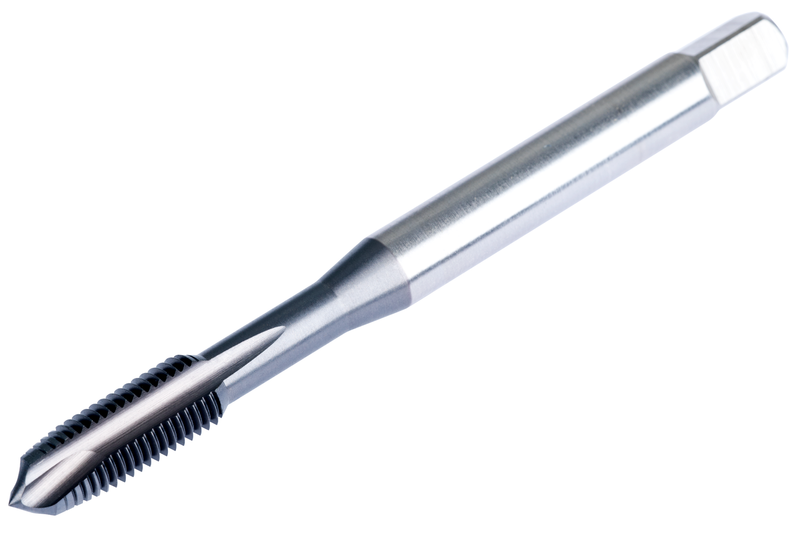

E697M8X1.0
E697M8X1.0
E697M8X1.0

E697M8X1.0

UGC DOR8464250
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$26.39 CAD - $26.39 CAD
$26.39 CAD
$26.39 CAD - $26.39 CAD
$26.39 CAD

Vendu en lots de : 1

Filetage MF8 mm x 1 mm, avec classe de tolérance de filetage 93707 et profondeur de filetage maximale de 20 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI)E697M8X1.0
Product Name (ISO)E697M8X1,0
GradeTiCN
Product Number8464250
Product FamilyE697(MF)
Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.378"
Usable Length — mm (LU)35.0 mm
Connection Dia. — in (DCON)0.318"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464250
EAN3603607095911
