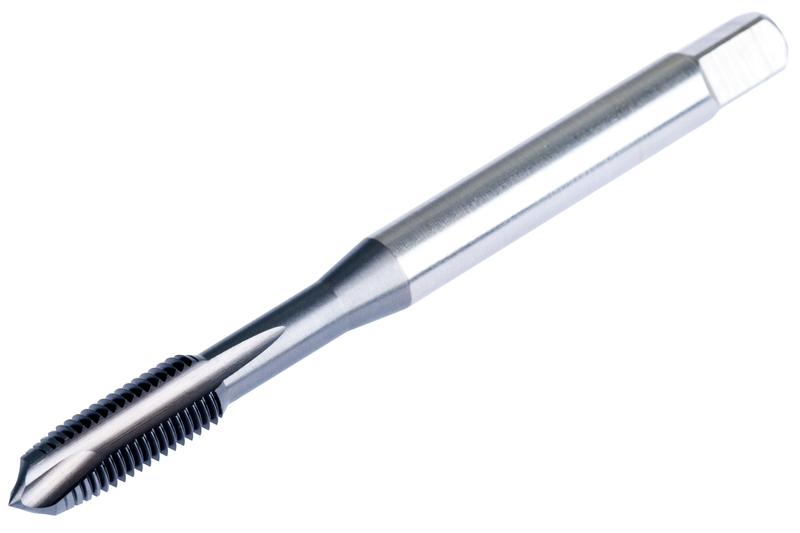

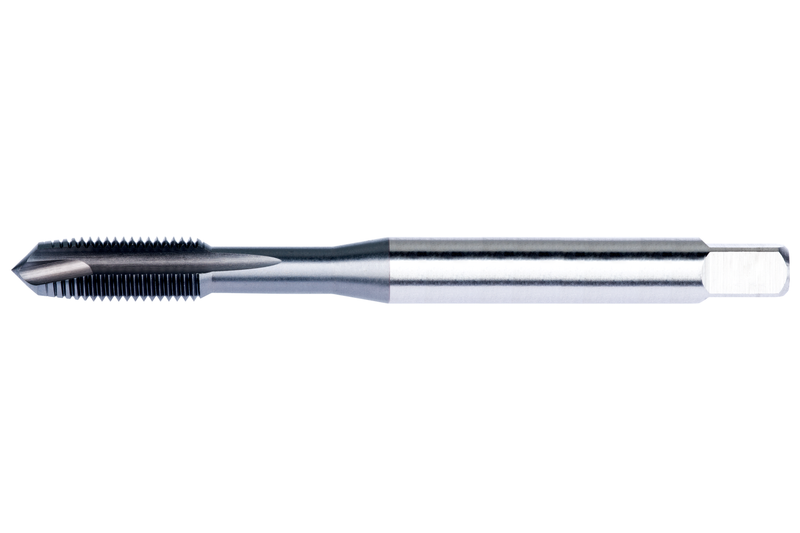

E697M10X1.0
E697M10X1.0
E697M10X1.0

E697M10X1.0

UGC DOR8464251
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
2 In Stock - Motool Edmonton
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.11 CAD - $32.11 CAD
$32.11 CAD
$32.11 CAD - $32.11 CAD
$32.11 CAD

Vendu en lots de : 1

Taille du filetage MF10 mm x 1 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale de 25 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697M10X1.0
GradeTiCN
Product Number8464251
Product FamilyE697(MF)
Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464251
EAN3603607095928
File Type Download
E697M10X1.0 — Line Drawing PDF Download
