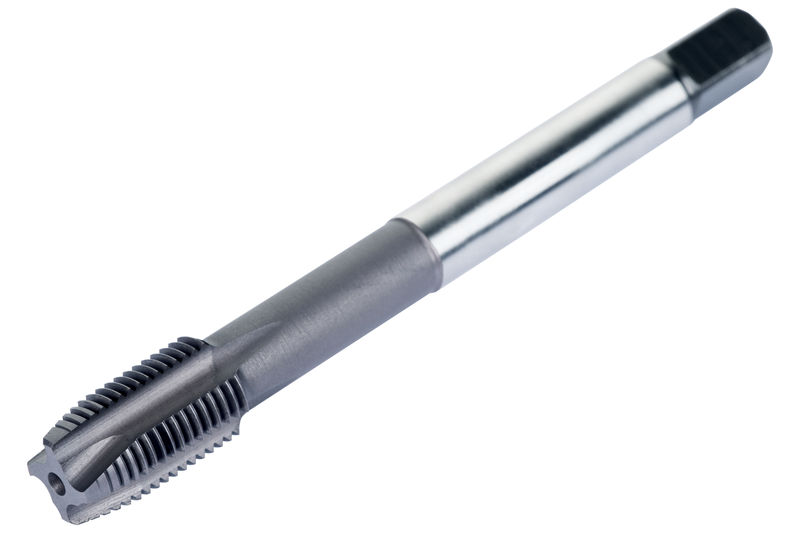

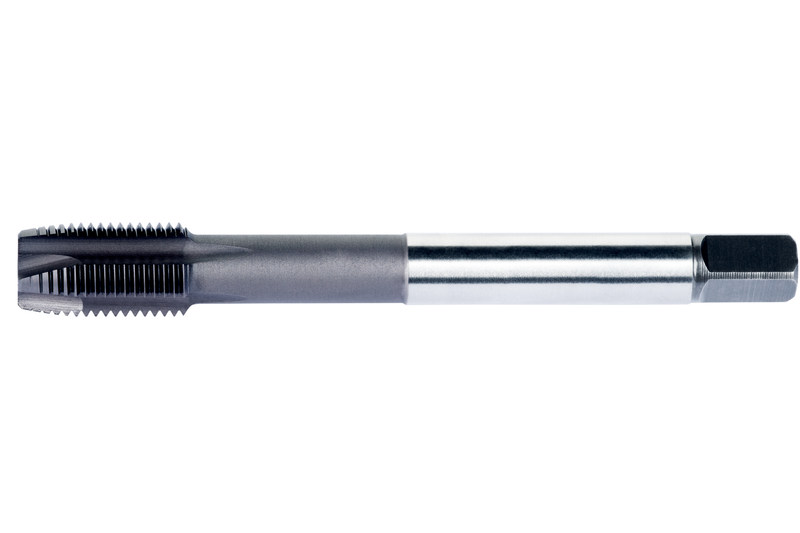

E697M12X1.25
E697M12X1.25
E697M12X1.25

E697M12X1.25

UGC DOR8464253
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.30 CAD - $41.30 CAD
$41.30 CAD
$41.30 CAD - $41.30 CAD
$41.30 CAD

Vendu en lots de : 1

Filetage MF12 mm x 1,25 mm, avec tolérance de filetage classe 93707, et profondeur de filetage maximale 30 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697M12X1.25
GradeTiCN
Product Number8464253
Product FamilyE697(FM)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)12
Thread Form (THFT)MF - Pas métrique fin
Thread Pitch — mm (TP)1.25 mm
Thread Pitch — in (TP)0.049"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464253
EAN3603607095942
File Type Download
E697M12X1.25 — Line Drawing PDF Download
