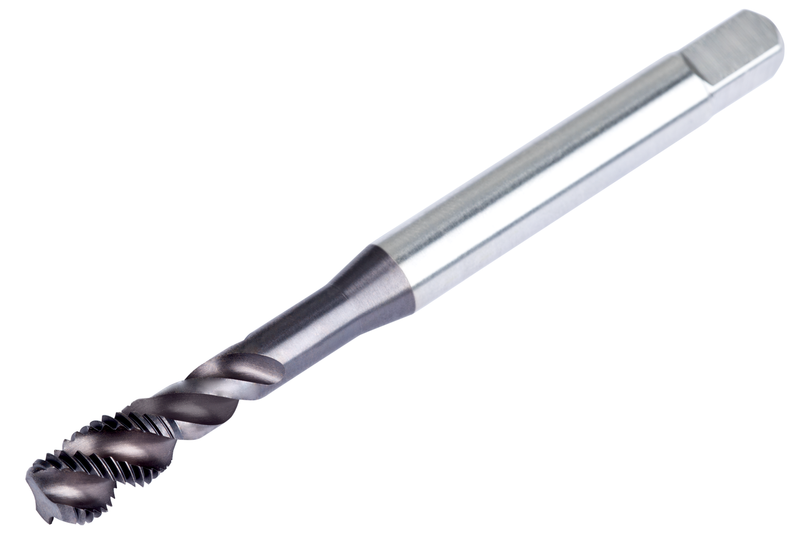

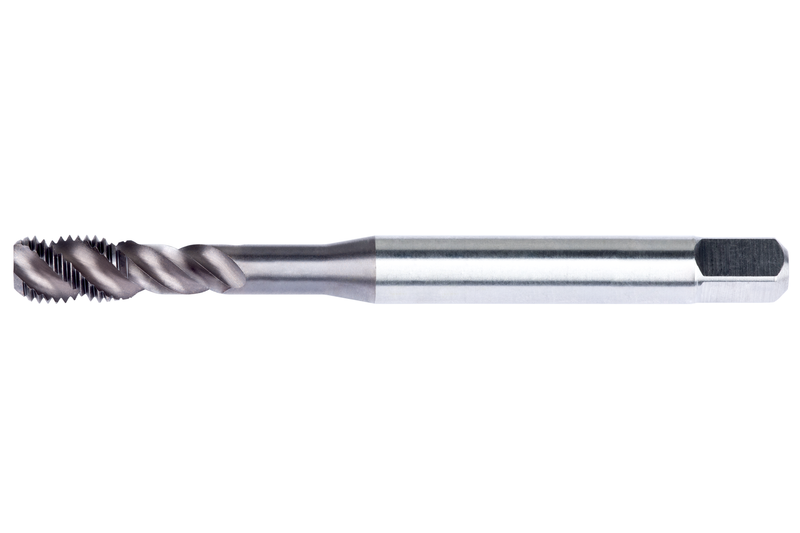

E698M10X1,0
E698M10X1,0
E698M10X1,0

E698M10X1,0

UGC DOR8464258
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.71 CAD - $35.71 CAD
$35.71 CAD
$35.71 CAD - $35.71 CAD
$35.71 CAD

Vendu en lots de : 1

Filetage MF10 mm x 1 mm, avec classe de tolérance 93707, et profondeur de filetage maximale 25 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698M10X1.0
GradeTiCN
Product Number8464258
Product FamilyE698(MF)

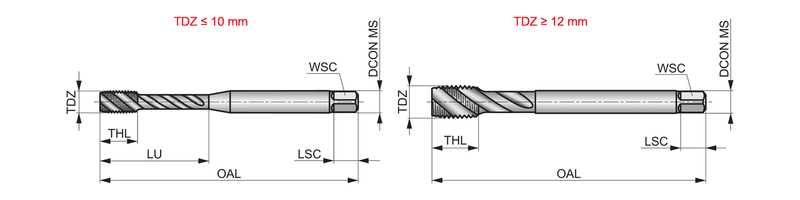

Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)90.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)39.0 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.0 mm
Thread Pitch — in (TP)0.039"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464258
EAN3603607095997
File Type Download
E698M10X1,0 — Line Drawing PDF Download
