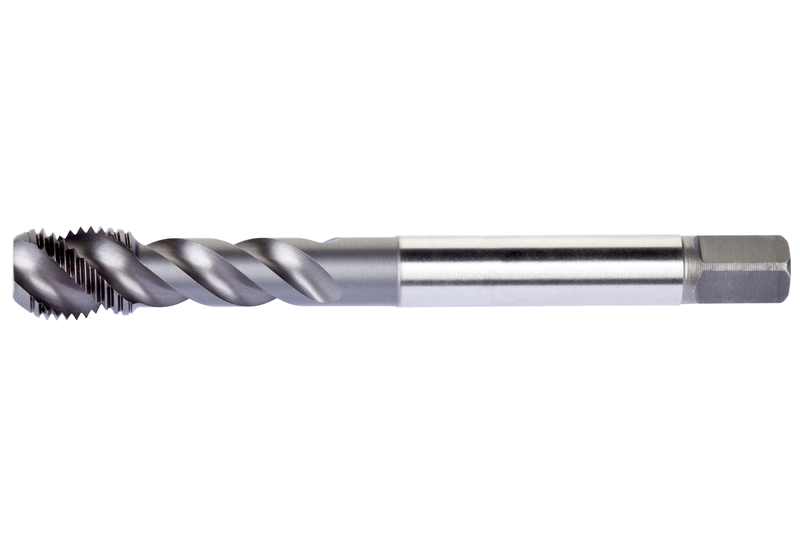

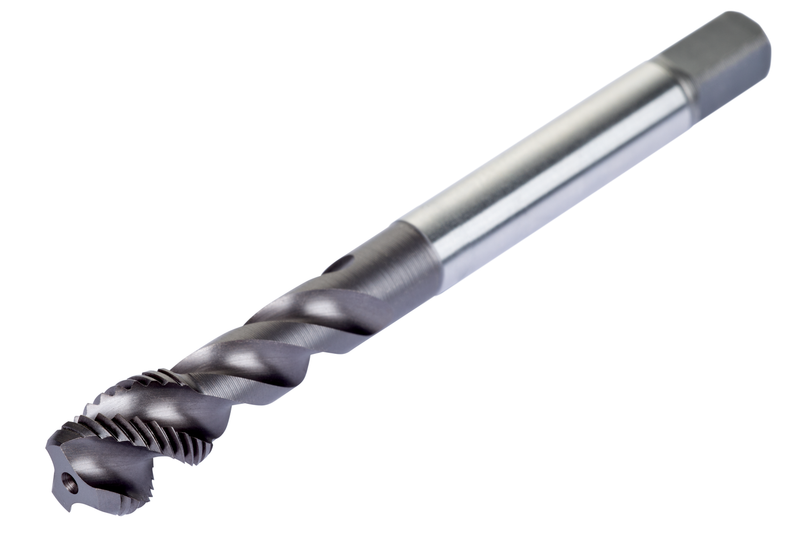

E698M14X1.5
E698M14X1.5
E698M14X1.5

E698M14X1.5

UGC DOR8464262
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$57.36 CAD - $57.36 CAD
$57.36 CAD
$57.36 CAD - $57.36 CAD
$57.36 CAD

Vendu en lots de : 1

Filetage MF14 mm x 1,5 mm, avec classe de tolérance de filetage 93707, et profondeur de filetage maximale 35 mm.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698M14X1.5
GradeTiCN
Product Number8464262
Product FamilyE698(MF)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.429"
Connection Dia. — mm (DCON)10.9 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)14
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Thread Pitch — in (TP)0.059"
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464262
EAN3603607096031
File Type Download
E698M14X1.5 — Line Drawing PDF Download
