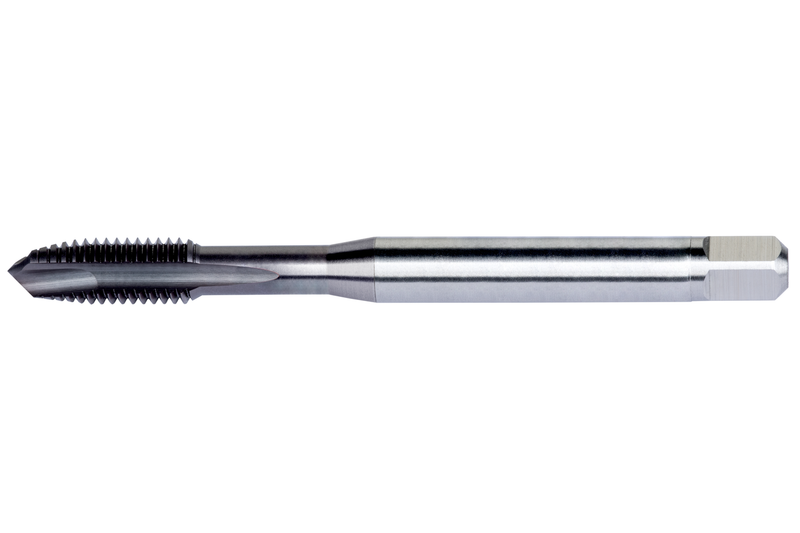

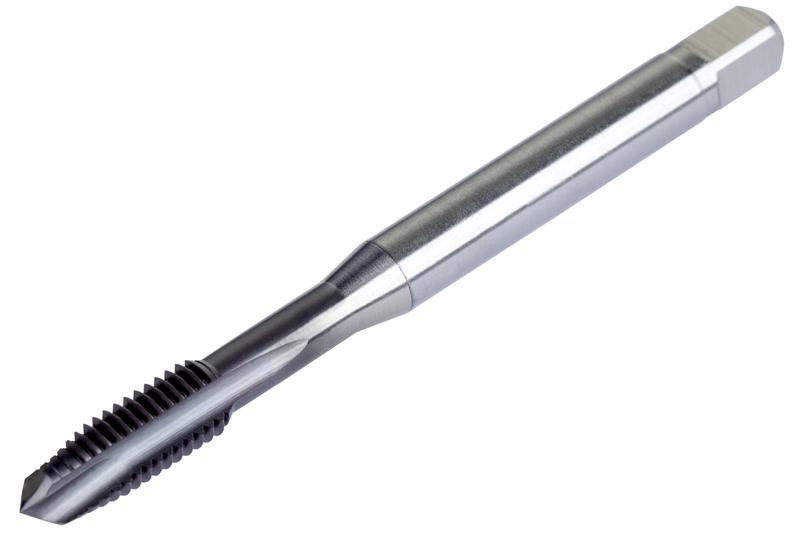

E697UNC5/16
E697UNC5/16
E697UNC5/16

E697UNC5/16

UGC DOR8464269
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.09 CAD - $24.09 CAD
$24.09 CAD
$24.09 CAD - $24.09 CAD
$24.09 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,3125 pouce - 18 TPI, avec une classe de tolérance de filetage 93707, des limites de diamètre de pas H5 et une profondeur de filetage maximale de 0,7813 pouces.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNC5/16
GradeTiCN
Product Number8464269
Product FamilyE697(UNC)
Dimensions
Overall Length — in (OAL)3.543"
Overall Length — mm (OAL)89.99 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.339"
Usable Length — mm (LU)34.01 mm
Connection Dia. — in (DCON)0.318"
Connection Dia. — mm (DCON)8.08 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)16 mai
Thread Form (THFT)ENC - Enrichissement Non Conventionnel
Threads per Inch (TPI)18.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464269
EAN3603607096109
File Type Download

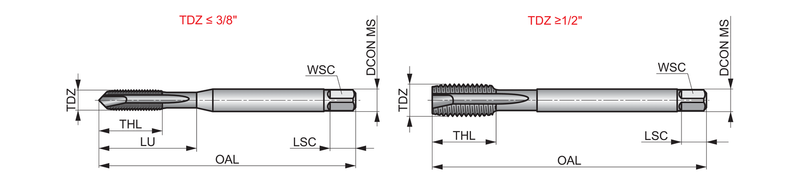

E697UNC5/16 — Line Drawing PDF Download
