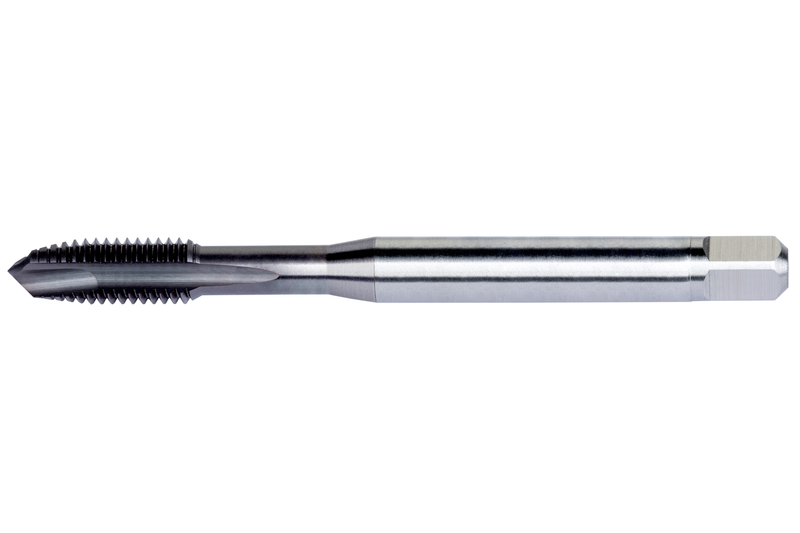

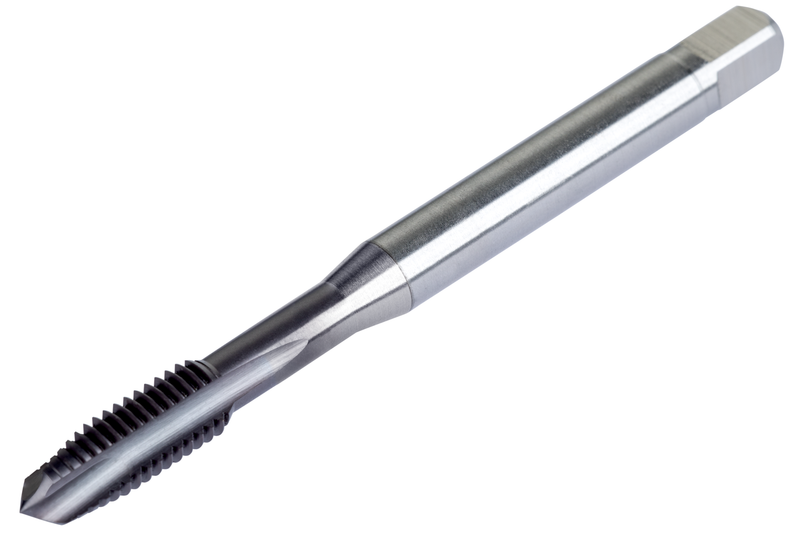

E697UNC3/8
E697UNC3/8
E697UNC3/8

E697UNC3/8

UGC DOR8464270
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.10 CAD - $29.10 CAD
$29.10 CAD
$29.10 CAD - $29.10 CAD
$29.10 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,375 pouce - 16 filets par pouce, avec une classe de tolérance de filetage 93707, des limites de diamètre primitif H5 et une profondeur de filetage maximale de 0,9375 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNC3/8
GradeTiCN
Product Number8464270
Product FamilyE697(UNC)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.535"
Usable Length — mm (LU)38.99 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Form (THFT)UGC - Unifié Gros
Threads per Inch (TPI)16.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464270
EAN3603607096116
File Type Download
E697UNC3/8 — Line Drawing PDF Download
