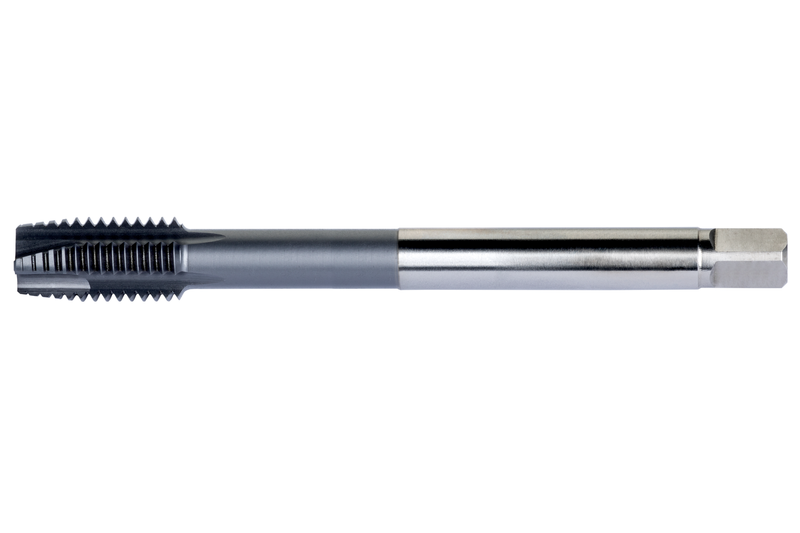

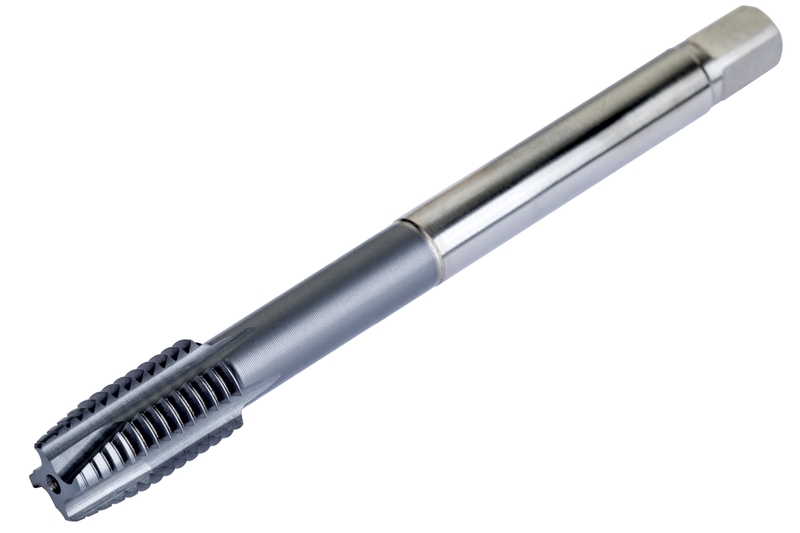

E697UNC1
E697UNC1
E697UNC1

E697UNC1

UGC DOR8464275
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$108.46 CAD - $108.46 CAD
$108.46 CAD
$108.46 CAD - $108.46 CAD
$108.46 CAD

Vendu en lots de : 1

Dimension du filetage UNC 1 pouce - 8 filets par pouce, avec une classe de tolérance de filetage 93707, des limites de diamètre de pas H6, et une profondeur de taraudage maximale de 2,5 pouces.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNC1
GradeTiCN
Product Number8464275
Product FamilyE697(NU)
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)159.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8"
Connection Dia. — mm (DCON)20.32 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)1
Thread Form (THFT)UGC - Unifié Gros Calibre
Threads per Inch (TPI)8.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464275
EAN3603607096161
File Type Download
E697UNC1 — Line Drawing PDF Download
