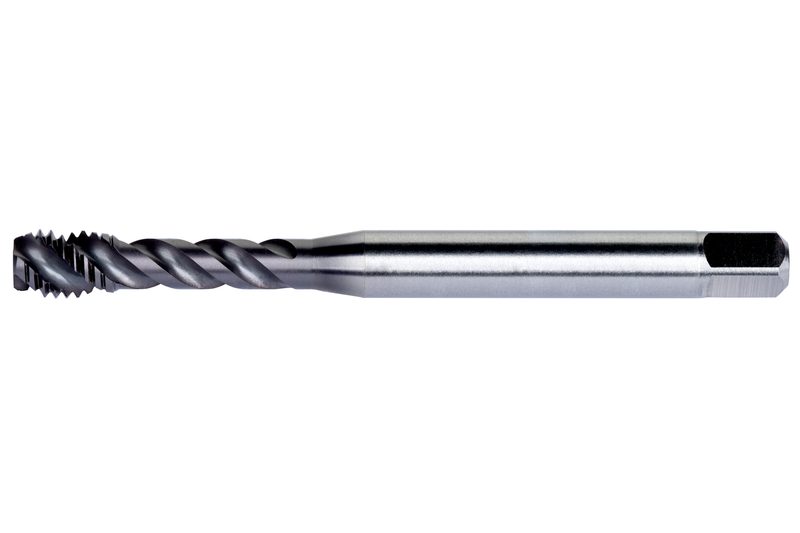

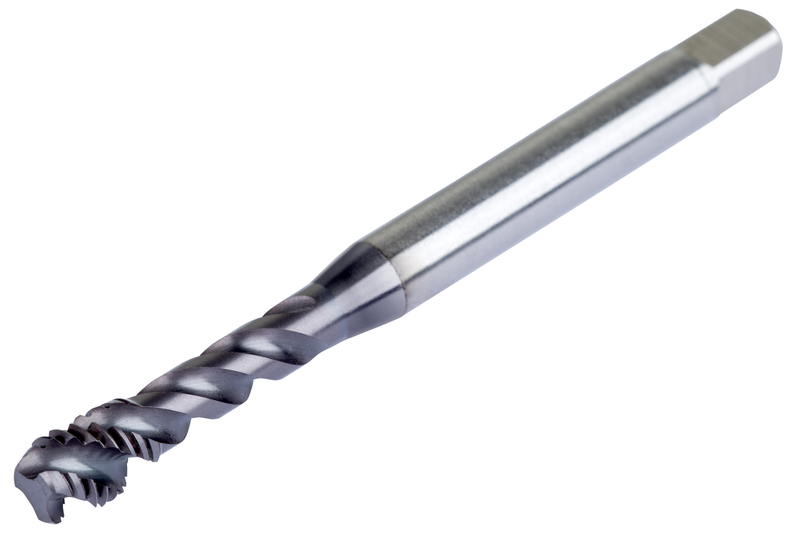

E698UNC6X32
E698UNC6X32
E698UNC6X32

E698UNC6X32

UGC DOR8464277
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.40 CAD - $22.40 CAD
$22.40 CAD
$22.40 CAD - $22.40 CAD
$22.40 CAD

Vendu en lots de : 1

Diamètre de filetage UNC 0,236 pouce - 32 TPI, avec classe de tolérance de filetage 93707, limites de diamètre de pas H2, et profondeur de filetage maximale 0,59 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC6X32
GradeTiCN
Product Number8464277
Product FamilyE698(NCU)
Dimensions
Overall Length — in (OAL)2.205"
Overall Length — mm (OAL)56.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.787"
Usable Length — mm (LU)19.99 mm
Connection Dia. — in (DCON)0.141"
Connection Dia. — mm (DCON)3.58 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)6
Thread Form (THFT)UNC - Filetage UNC
Threads per Inch (TPI)32.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464277
EAN3603607096185
File Type Download
E698UNC6X32 — Line Drawing PDF Download
