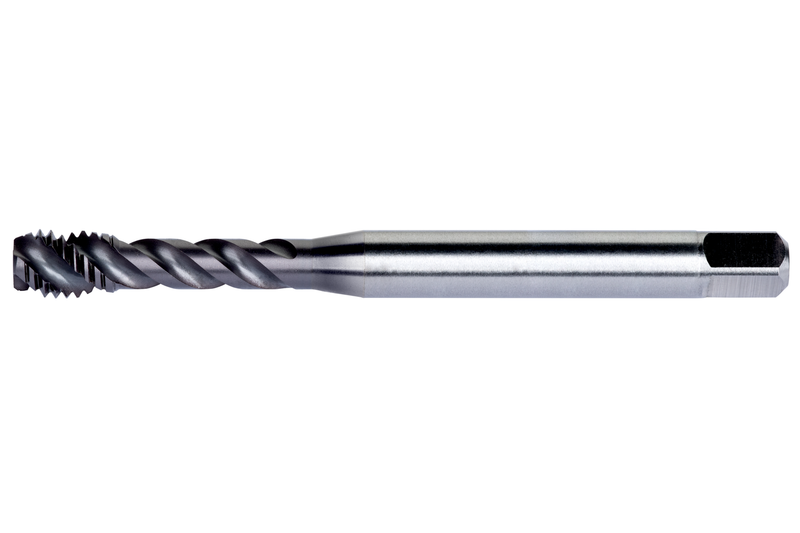

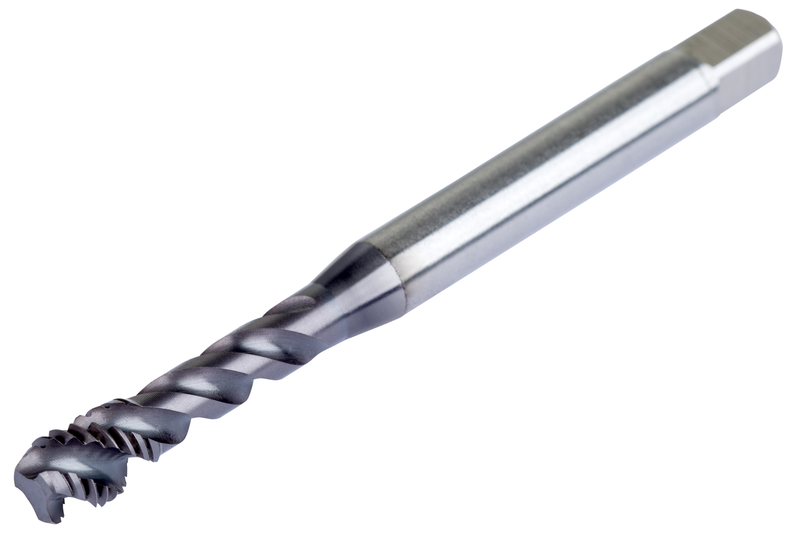

E698UNC8X32
E698UNC8X32
E698UNC8X32

E698UNC8X32

UGC DOR8464278
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$22.81 CAD - $22.81 CAD
$22.81 CAD
$22.81 CAD - $22.81 CAD
$22.81 CAD

Vendu en lots de : 1

Filetage UNC 0,315 pouce - 32 TPI, avec tolérance de filetage de classe 93707, limites de diamètre sur flancs H3 et profondeur de filetage maximale de 0,7875 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC8X32
GradeTiCN
Product Number8464278
Product FamilyE698(NC)
Dimensions
Overall Length — in (OAL)2.48"
Overall Length — mm (OAL)62.99 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.827"
Usable Length — mm (LU)21.01 mm
Connection Dia. — in (DCON)0.168"
Connection Dia. — mm (DCON)4.27 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)8
Thread Form (THFT)UNC - Coarse unifié
Threads per Inch (TPI)32.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464278
EAN3603607096192
File Type Download
E698UNC8X32 — Line Drawing PDF Download
