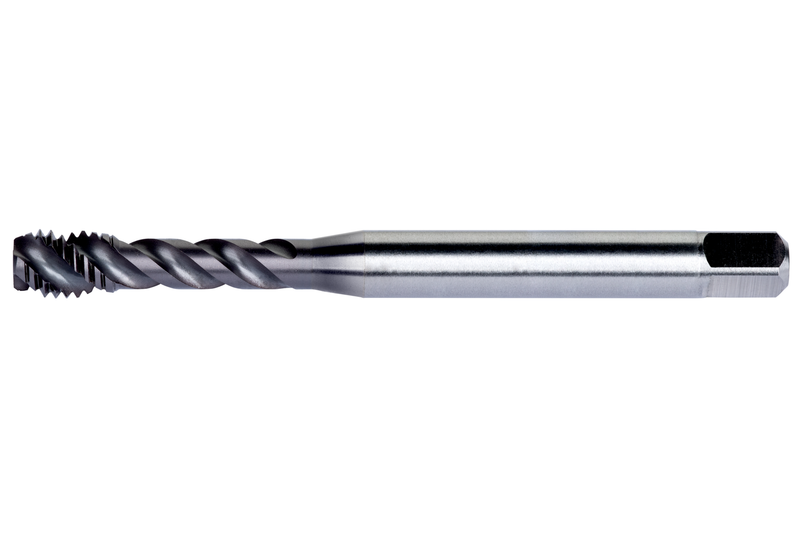

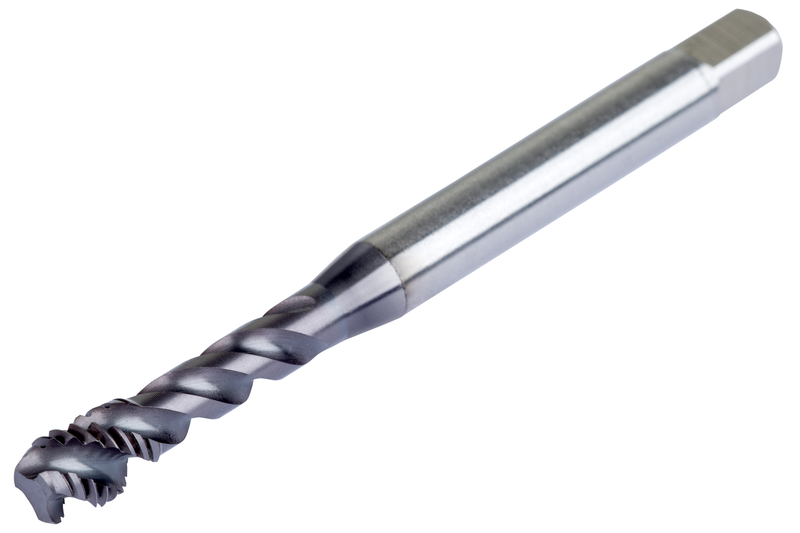

E698UNC10X24
E698UNC10X24
E698UNC10X24

E698UNC10X24

UGC DOR8464279
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.04 CAD - $24.04 CAD
$24.04 CAD
$24.04 CAD - $24.04 CAD
$24.04 CAD

Vendu en lots de : 1

Filetage UNC 0,394 pouce - 24 filets par pouce (FPP), avec une classe de tolérance de filetage 93707, des limites de diamètre primitif H3 et une profondeur de filetage maximale de 0,985 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC10X24
GradeTiCN
Product Number8464279
Product FamilyE698(CNU)
Dimensions
Overall Length — in (OAL)2.756"
Overall Length — mm (OAL)70.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.102"
Usable Length — mm (LU)27.99 mm
Connection Dia. — in (DCON)0.194"
Connection Dia. — mm (DCON)4.93 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)10
Thread Form (THFT)UNC - Unifié grossier
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464279
EAN3603607096208
File Type Download

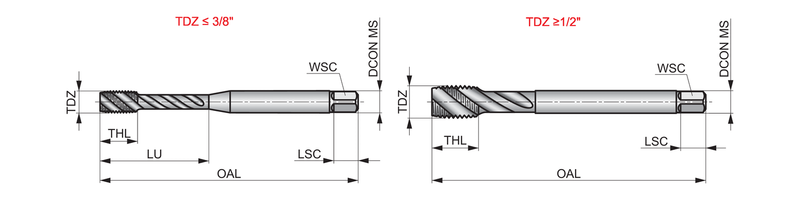

E698UNC10X24 — Line Drawing PDF Download
