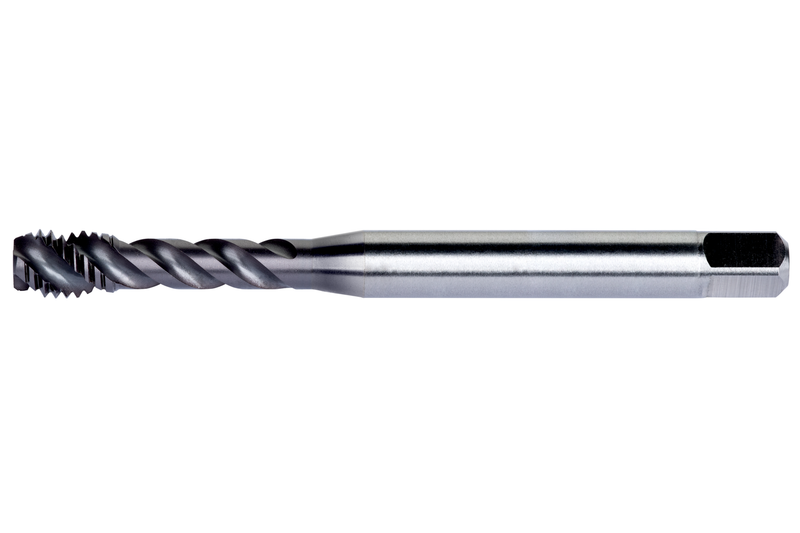

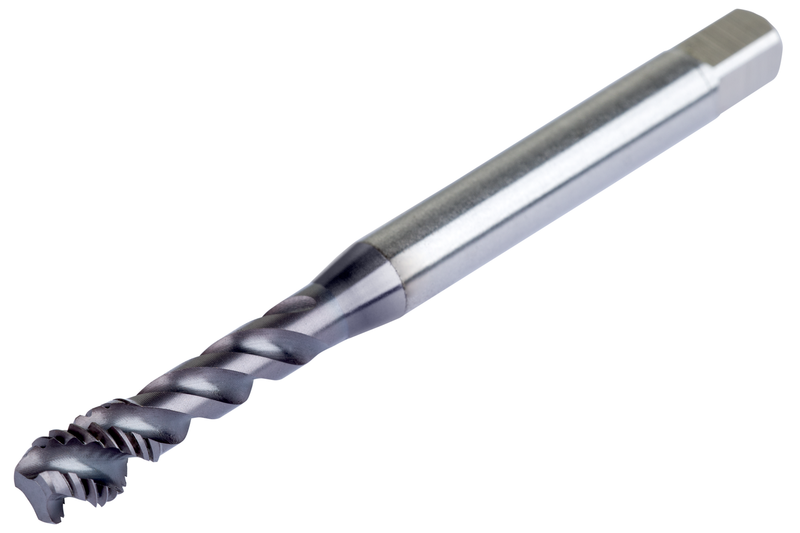

E698UNC1/4
E698UNC1/4
E698UNC1/4

E698UNC1/4

UGC DOR8464280
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$24.17 CAD - $24.17 CAD
$24.17 CAD
$24.17 CAD - $24.17 CAD
$24.17 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,25 pouce - 20 TPI, avec une tolérance de filetage de classe 93707, des limites de diamètre de pas H5 et une profondeur de filetage maximale de 0,625 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC1/4
GradeTiCN
Product Number8464280
Product FamilyE698(NU)
Dimensions
Overall Length — in (OAL)3.15"
Overall Length — mm (OAL)80.01 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)0.984"
Usable Length — mm (LU)24.99 mm
Connection Dia. — in (DCON)0.255"
Connection Dia. — mm (DCON)6.48 mm
Number of Flutes (NOF)3
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)1/4
Thread Form (THFT)UGC - Unifié Gros
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464280
EAN3603607096215
File Type Download

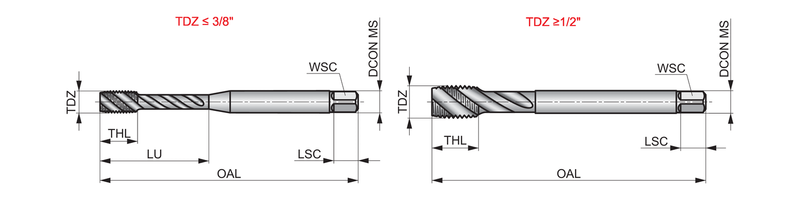

E698UNC1/4 — Line Drawing PDF Download
