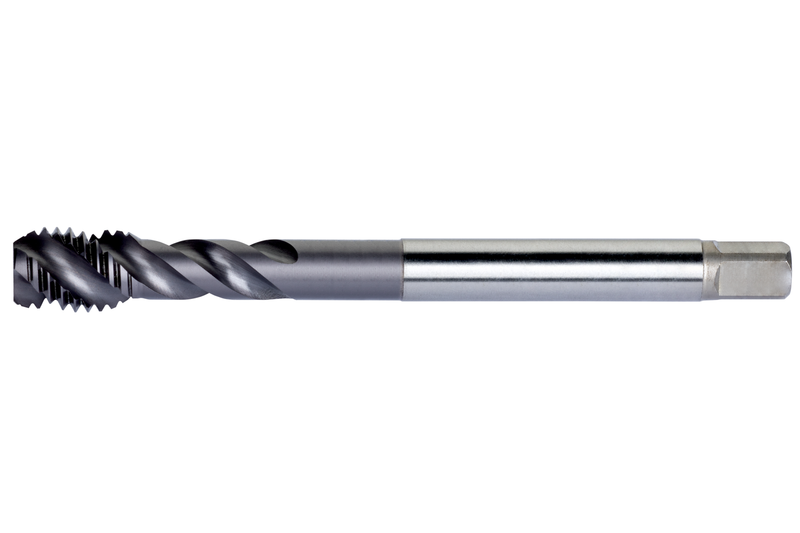

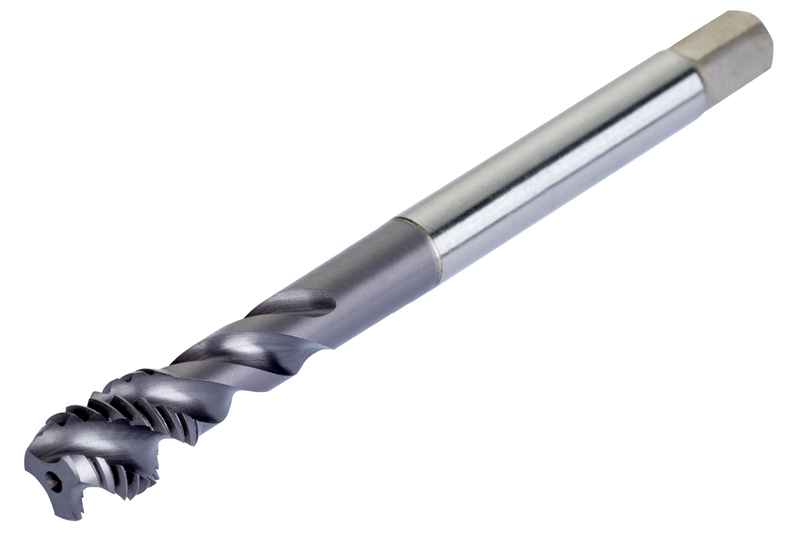

E698UNC1
E698UNC1
E698UNC1

E698UNC1

UGC DOR8464287
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$124.63 CAD - $124.63 CAD
$124.63 CAD
$124.63 CAD - $124.63 CAD
$124.63 CAD

Vendu en lots de : 1

Filetage UNC 1 pouce - 8 filets au pouce, avec classe de tolérance de filetage 93707, limites du diamètre de flanc H6 et profondeur de filetage maximale de 2,5 pouces.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E698UNC1
GradeTiCN
Product Number8464287
Product FamilyE698(NCU)
Dimensions
Overall Length — in (OAL)6.299"
Overall Length — mm (OAL)159.99 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.8"
Connection Dia. — mm (DCON)20.32 mm
Number of Flutes (NOF)4
Helix Angle (FHA)48.0°
Threading
Thread Diameter Size (TDZ)1
Thread Form (THFT)UC - Unifié grossier
Threads per Inch (TPI)8.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464287
EAN3603607096284
File Type Download
E698UNC1 — Line Drawing PDF Download
