UGC DOR8464291
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$31.86 CAD - $31.86 CAD
$31.86 CAD
$31.86 CAD - $31.86 CAD
$31.86 CAD

Vendu en lots de : 1

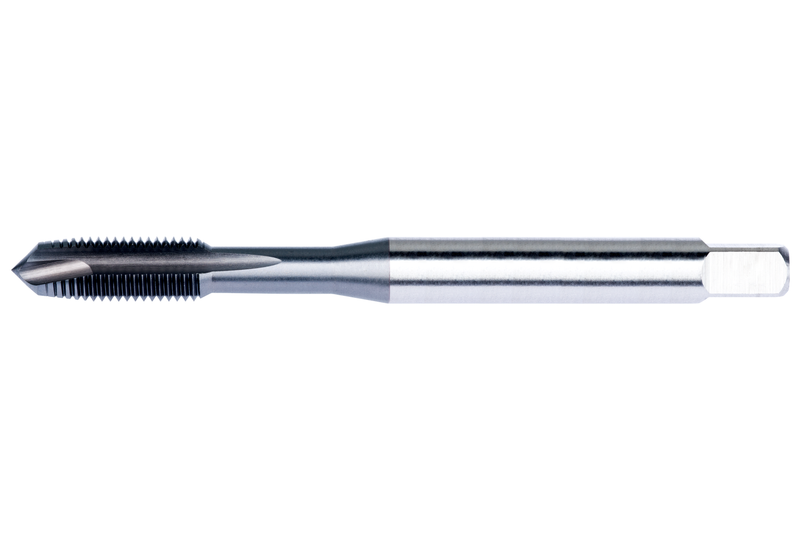

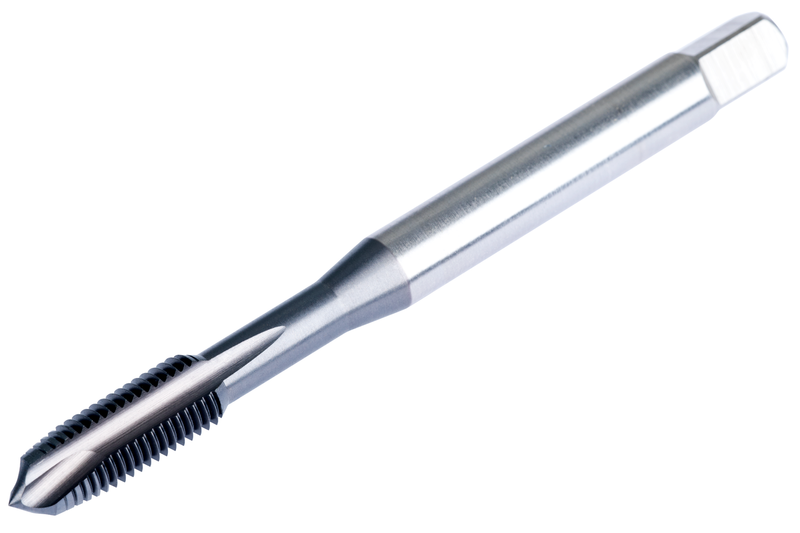

Filetage UNF 0,375 pouce - 24 TPI, avec classe de tolérance de filetage 93707, limites de diamètre de pas H4, et profondeur de filetage maximale 0,9375 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNF3/8
GradeTiCN
Product Number8464291
Product FamilyE697(UNF)
Dimensions
Overall Length — in (OAL)3.937"
Overall Length — mm (OAL)100.0 mm
Length × Diameter Ratio2.5
Usable Length — in (LU)1.476"
Usable Length — mm (LU)37.49 mm
Connection Dia. — in (DCON)0.381"
Connection Dia. — mm (DCON)9.68 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)3/8
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)24.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464291
EAN3603607096321
File Type Download
E697UNF3/8 — Line Drawing PDF Download
