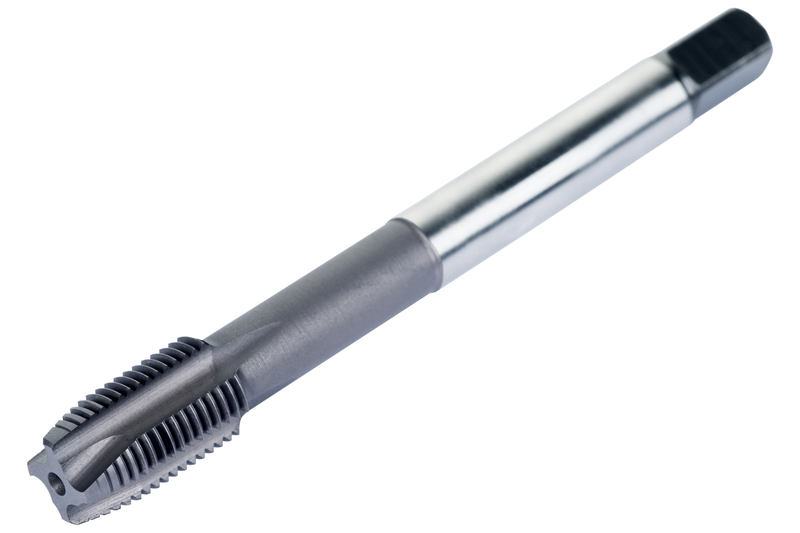

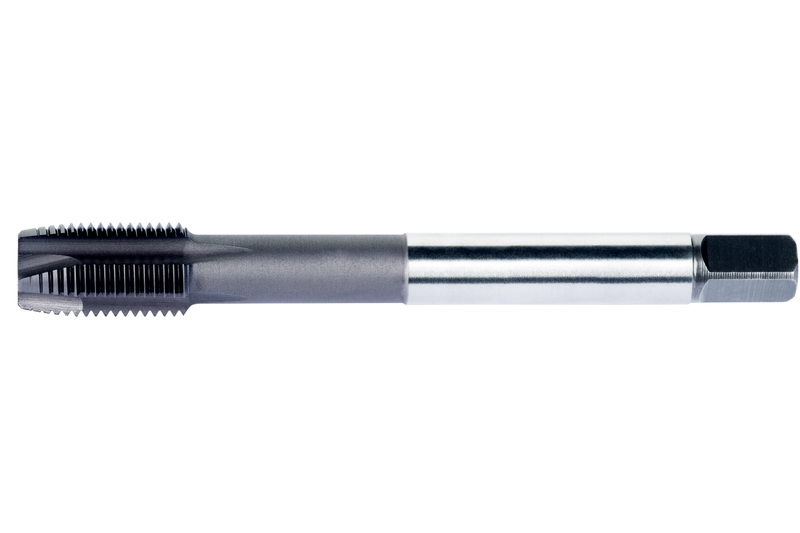

E697UNF1/2
E697UNF1/2
E697UNF1/2

E697UNF1/2

UGC DOR8464292
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$41.04 CAD - $41.04 CAD
$41.04 CAD
$41.04 CAD - $41.04 CAD
$41.04 CAD

Vendu en lots de : 1

Dimension du filetage UNF 0,5 pouce - 20 TPI, avec classe de tolérance de filetage 93707, limites de diamètre sur flancs H5 et profondeur de filetage maximale de 1,25 pouce.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNF1/2
GradeTiCN
Product Number8464292
Product FamilyE697(NUF)
Dimensions
Overall Length — in (OAL)4.331"
Overall Length — mm (OAL)110.01 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.367"
Connection Dia. — mm (DCON)9.32 mm
Number of Flutes (NOF)3
Threading
Thread Diameter Size (TDZ)1/2
Thread Form (THFT)UNF - Pas fin unifié
Threads per Inch (TPI)20.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464292
EAN3603607096338
File Type Download
E697UNF1/2 — Line Drawing PDF Download
