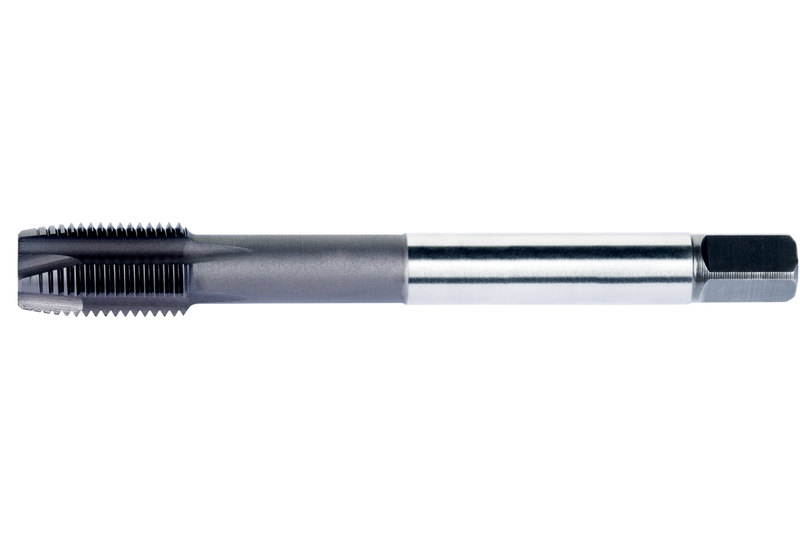

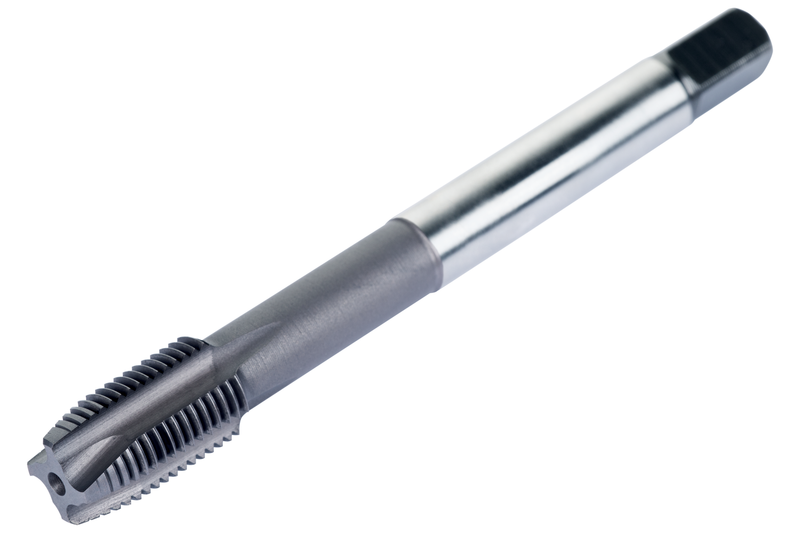

E697UNF7/8
E697UNF7/8
E697UNF7/8

E697UNF7/8

UGC DOR8464295
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$128.27 CAD - $128.27 CAD
$128.27 CAD
$128.27 CAD - $128.27 CAD
$128.27 CAD

Vendu en lots de : 1

Filetage UNF 0,875 pouce - 14 filets par pouce, avec tolérance de filetage classe 93707, limites de diamètre sur flancs H6 et profondeur de filetage maximale de 2,1875 pouces.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E697UNF7/8
GradeTiCN
Product Number8464295
Product FamilyE697(FNU)
Dimensions
Overall Length — in (OAL)5.512"
Overall Length — mm (OAL)140.0 mm
Length × Diameter Ratio2.5
Connection Dia. — in (DCON)0.697"
Connection Dia. — mm (DCON)17.7 mm
Number of Flutes (NOF)4
Threading
Thread Diameter Size (TDZ)7/8
Thread Form (THFT)UNF - Filetage fin unifié
Threads per Inch (TPI)14.0
Tool Information
Direction of ToolD'accord
StandardDIN/ANSI
Reference Numbers
EDP Number8464295
EAN3603607096369
File Type Download
E697UNF7/8 — Line Drawing PDF Download
