E559M3NO1
E559M3NO1
E559M3NO1

E559M3NO1

UGC DOR8522374
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.83 CAD - $6.83 CAD
$6.83 CAD
$6.83 CAD - $6.83 CAD
$6.83 CAD

Vendu en lots de : 1

Filetage M3 mm x 0,5 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI)E559M3NO1
Product Name (ISO)E559M3NON1
GradeLumineux
Product Number8522374
Product FamilyE559NO1(M)

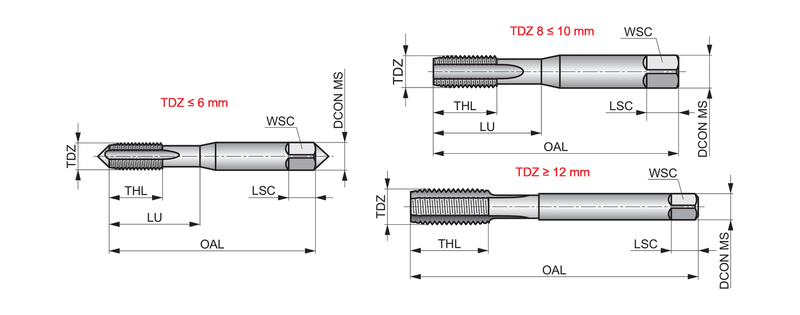

Dimensions
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)18.0 mm
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)3
Thread Diameter — mm (TD)3.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)0.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522374
EAN3603607150658
File Type Download
E559M3NO1 — Line Drawing PDF Download
