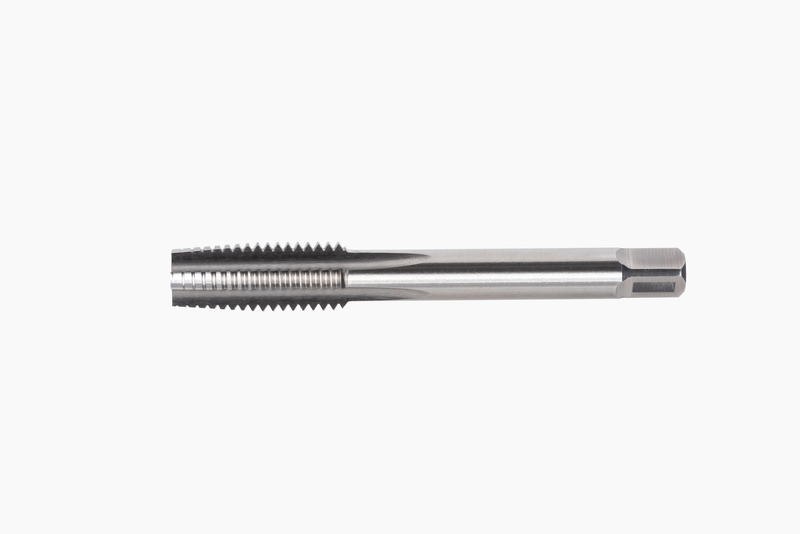

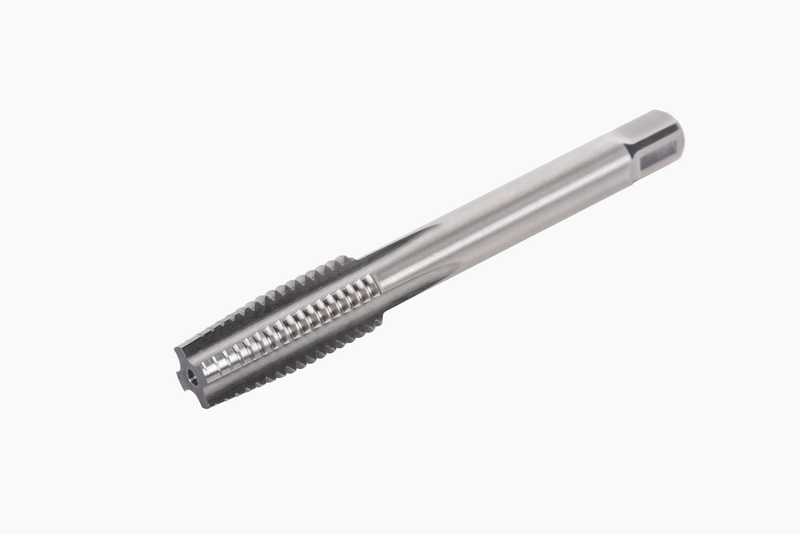

E559M20NO1
E559M20NO1
E559M20NO1

E559M20NO1

UGC DOR8522393
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$29.64 CAD - $29.64 CAD
$29.64 CAD
$29.64 CAD - $29.64 CAD
$29.64 CAD

Vendu en lots de : 1

Taille du filetage M20 mm x 2,5 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M20NO1
GradeLumineux
Product Number8522393
Product FamilyE559NO1(M)
Dimensions
Overall Length — mm (OAL)112.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)14.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)20
Thread Diameter — mm (TD)20.0 mm
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)2.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522393
EAN3603607150740
