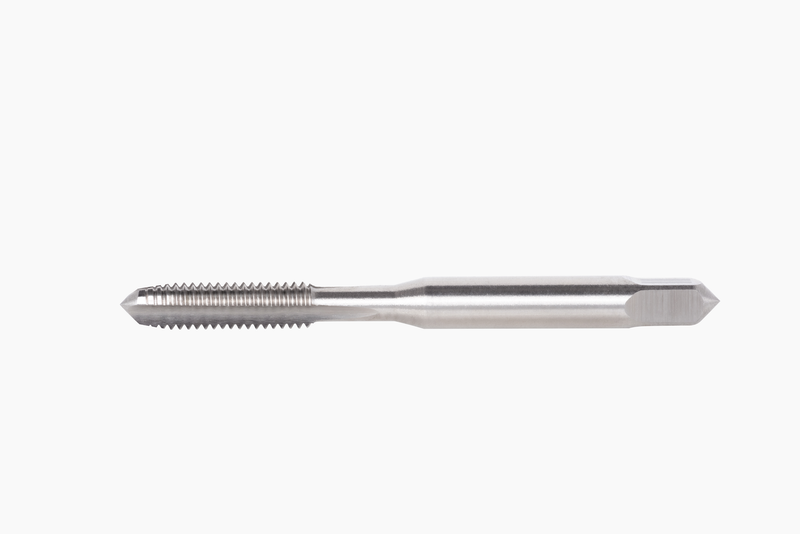

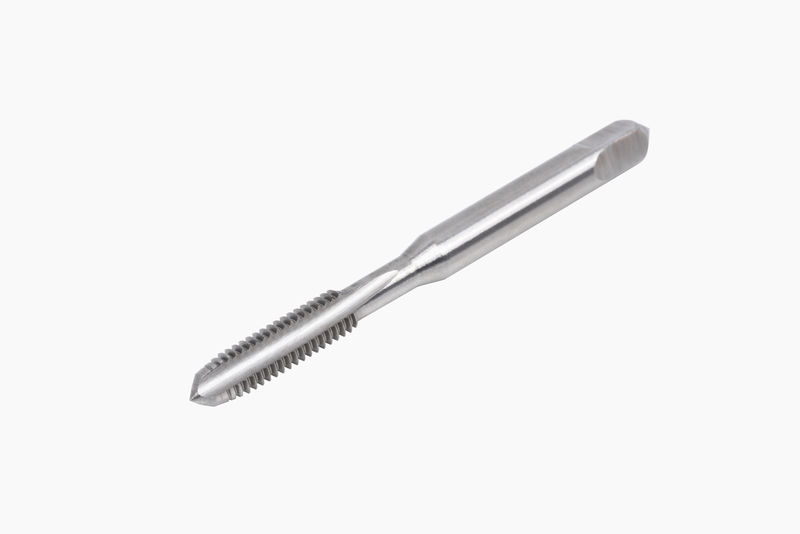

E559M4NO2
E559M4NO2
E559M4NO2

E559M4NO2

UGC DOR8522395
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.04 CAD - $6.04 CAD
$6.04 CAD
$6.04 CAD - $6.04 CAD
$6.04 CAD

Vendu en lots de : 1

Filetage M4 mm x 0,7 mm, avec classe de tolérance 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M4NO2
GradeLumineux
Product Number8522395
Product FamilyE559NO2(M)

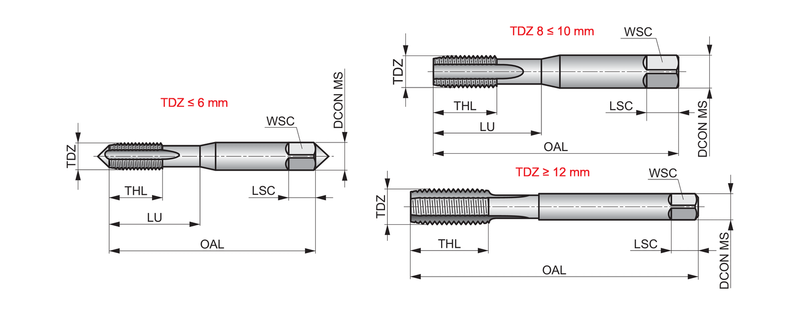

Dimensions
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)21.0 mm
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)4
Thread Diameter — mm (TD)4.0 mm
Thread Form (THFT)M - Pas métrique grossier
Thread Pitch — mm (TP)0.7 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522395
EAN3603607150764
File Type Download
E559M4NO2 — Line Drawing PDF Download
