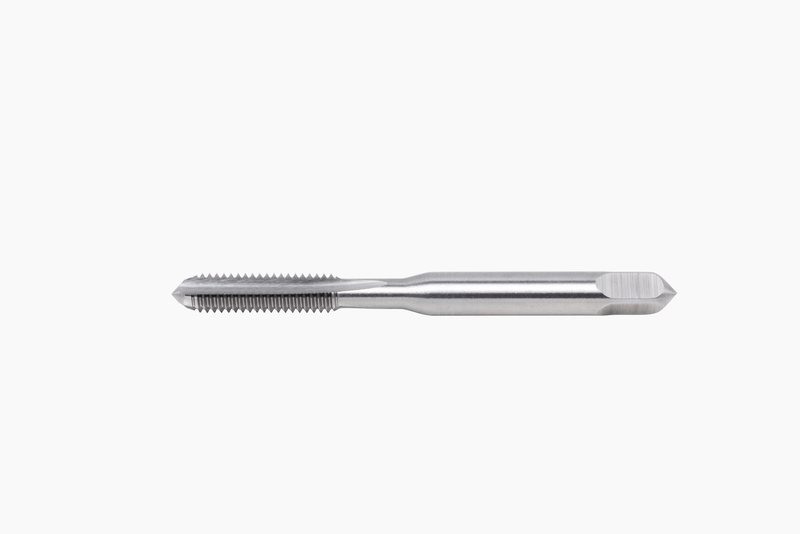

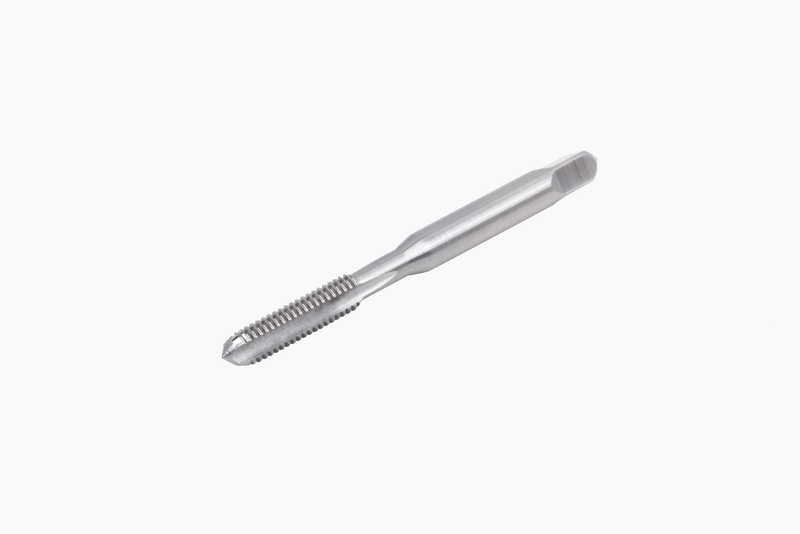

E559M5NO3
E559M5NO3
E559M5NO3

E559M5NO3

UGC DOR8522406
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$6.76 CAD - $6.76 CAD
$6.76 CAD
$6.76 CAD - $6.76 CAD
$6.76 CAD

Vendu en lots de : 1

Taille du filetage M5 mm x 0,8 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M5NO3
GradeLumineux
Product Number8522406
Product FamilyE559NO3(M)
Dimensions
Overall Length — mm (OAL)58.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)25.0 mm
Connection Dia. — mm (DCON)5.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)5
Thread Diameter — mm (TD)5.0 mm
Thread Form (THFT)M - Métrique à pas gros
Thread Pitch — mm (TP)0.8 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522406
EAN3603607150870
File Type Download
E559M5NO3 — Line Drawing PDF Download
