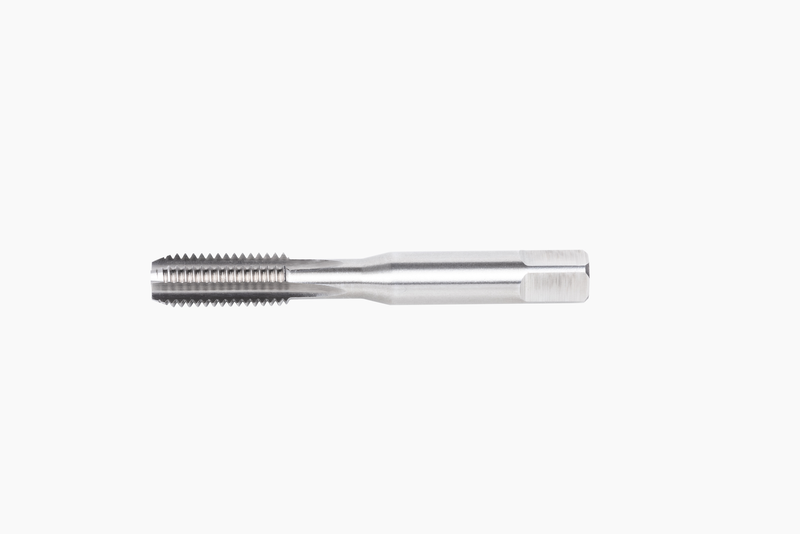

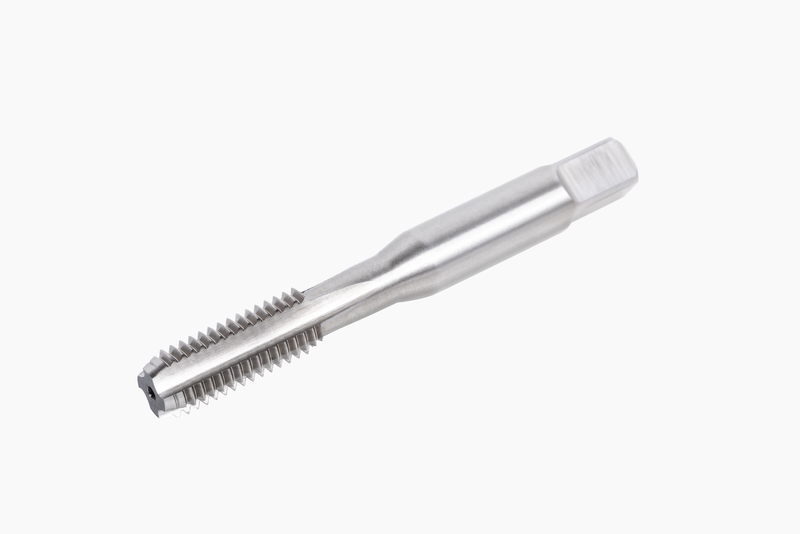

E559M8NO3
E559M8NO3
E559M8NO3

E559M8NO3

UGC DOR8522408
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$7.79 CAD - $7.79 CAD
$7.79 CAD
$7.79 CAD - $7.79 CAD
$7.79 CAD

Vendu en lots de : 1

Filetage M8 mm x 1,25 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M8NO3
GradeLumineux
Product Number8522408
Product FamilyE559NO3(M)
Dimensions
Overall Length — mm (OAL)72.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)35.0 mm
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — mm (TD)8.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.25 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522408
EAN3603607150894
File Type Download
E559M8NO3 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
