E559M4NO6
E559M4NO6

E559M4NO6

UGC DOR8522415
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$18.11 CAD - $18.11 CAD
$18.11 CAD
$18.11 CAD - $18.11 CAD
$18.11 CAD

Vendu en lots de : 1

Taille du filetage M4 mm x 0,7 mm, avec classe de tolérance du filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M4NO6
GradeLumineux
Product Number8522415
Product FamilyE559NO6(M)

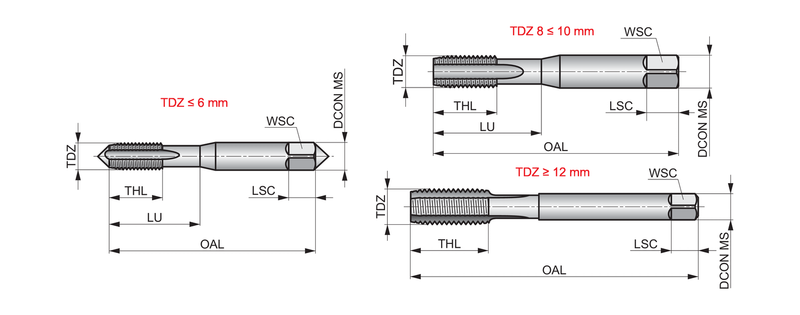

Dimensions
Overall Length — mm (OAL)53.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)21.0 mm
Connection Dia. — mm (DCON)4.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)4
Thread Diameter — mm (TD)4.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.7 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522415
EAN3603607150962
File Type Download
E559M4NO6 — Line Drawing PDF Download
