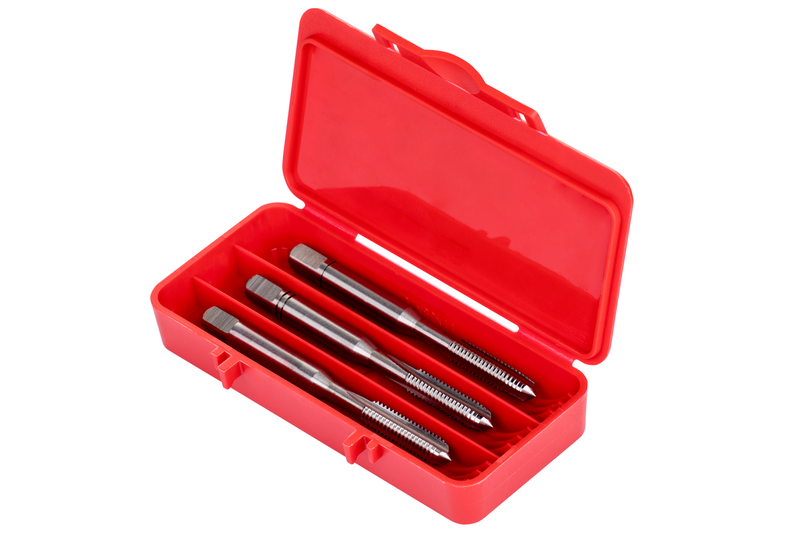

E559M3NO8
E559M3NO8

E559M3NO8

UGC DOR8522424
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$20.47 CAD - $20.47 CAD
$20.47 CAD
$20.47 CAD - $20.47 CAD
$20.47 CAD

Vendu en lots de : 1

Filetage M3 mm x 0,5 mm, avec tolérance de filetage de classe 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M3NO8
GradeLumineux
Product Number8522424
Product FamilyE559NO8(M)
Dimensions
Overall Length — mm (OAL)48.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)18.0 mm
Connection Dia. — mm (DCON)3.15 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)3
Thread Diameter — mm (TD)3.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)0.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522424
EAN3603607151051
File Type Download
E559M3NO8 — Line Drawing PDF Download
