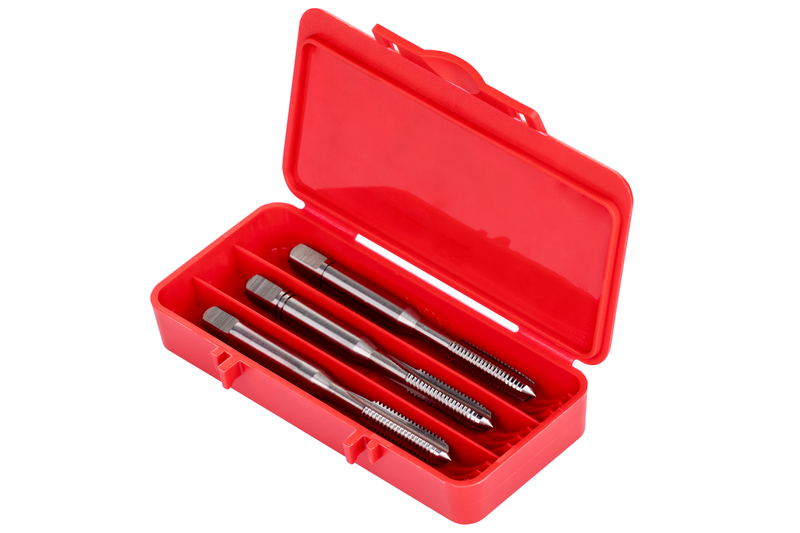

E559M6NO8
E559M6NO8

E559M6NO8

UGC DOR8522427
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$19.83 CAD - $19.83 CAD
$19.83 CAD
$19.83 CAD - $19.83 CAD
$19.83 CAD

Vendu en lots de : 1

Diamètre de filetage M6 mm x 1 mm, avec une classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M6NO8
GradeLumineux
Product Number8522427
Product FamilyE559NO8(M)

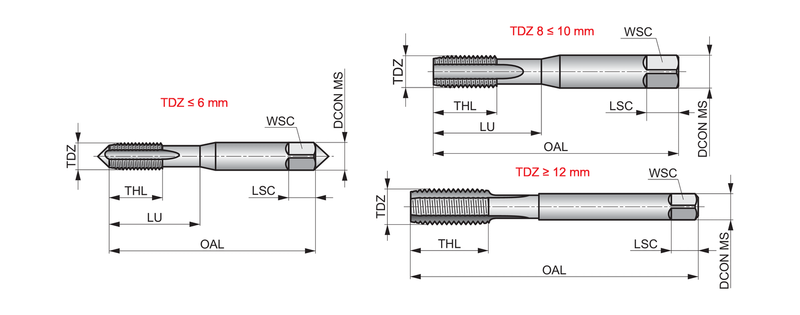

Dimensions
Overall Length — mm (OAL)66.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)30.0 mm
Connection Dia. — mm (DCON)6.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)6
Thread Diameter — mm (TD)6.0 mm
Thread Form (THFT)M - Pas gros métrique
Thread Pitch — mm (TP)1.0 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522427
EAN3603607151082
File Type Download
E559M6NO8 — Line Drawing PDF Download
