E559M12NO8
E559M12NO8

E559M12NO8

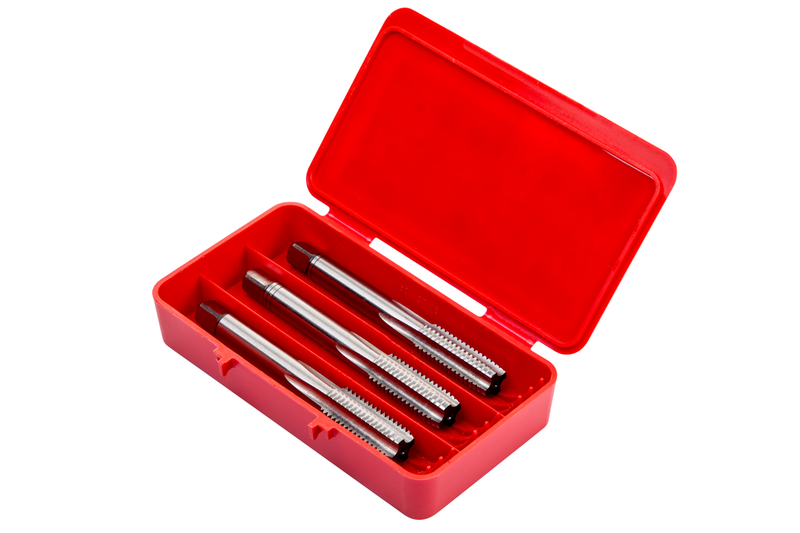

UGC DOR8522430
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$37.36 CAD - $37.36 CAD
$37.36 CAD
$37.36 CAD - $37.36 CAD
$37.36 CAD

Vendu en lots de : 1

Filetage M12 mm x 1,75 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M12NO8
GradeLumineux
Product Number8522430
Product FamilyE559NO8(M)

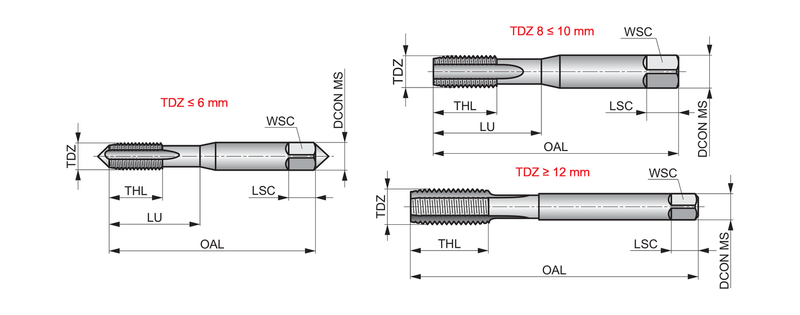

Dimensions
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)1.75 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522430
EAN3603607151112
File Type Download
E559M12NO8 — Line Drawing PDF Download
