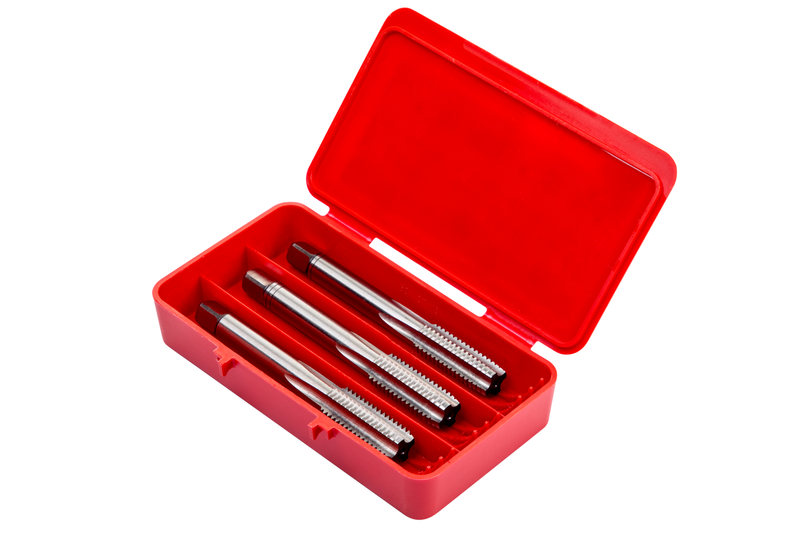

E559M14NO8
E559M14NO8

E559M14NO8

UGC DOR8522431
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$49.14 CAD - $49.14 CAD
$49.14 CAD
$49.14 CAD - $49.14 CAD
$49.14 CAD

Vendu en lots de : 1

Filetage M14 mm x 2 mm, avec tolérance de filetage classe 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M14NO8
GradeLumineux
Product Number8522431
Product FamilyE559NO8(M)

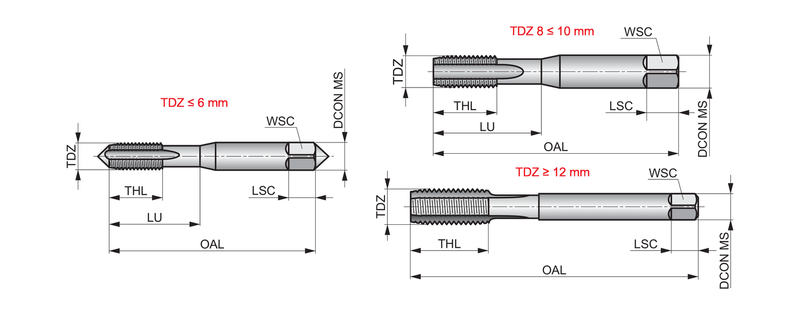

Dimensions
Overall Length — mm (OAL)95.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)14
Thread Diameter — mm (TD)14.0 mm
Thread Form (THFT)M - Pas métrique gros
Thread Pitch — mm (TP)2.0 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522431
EAN3603607151129
File Type Download
E559M14NO8 — Line Drawing PDF Download
