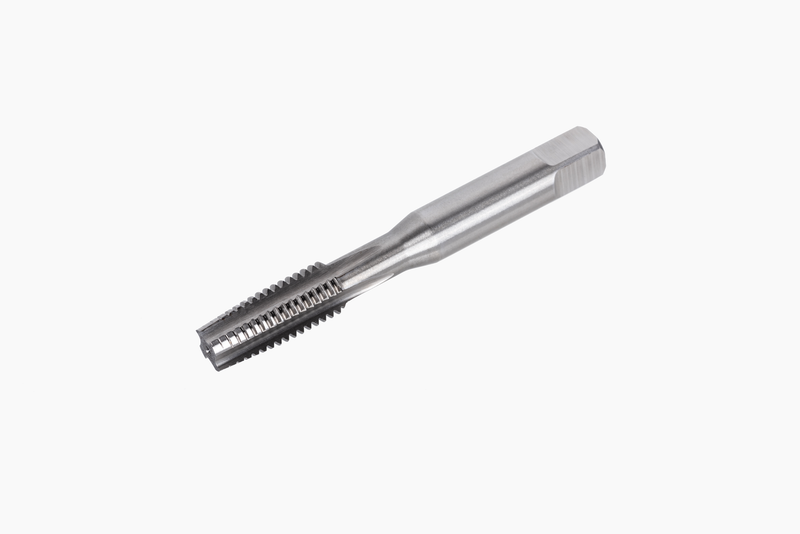

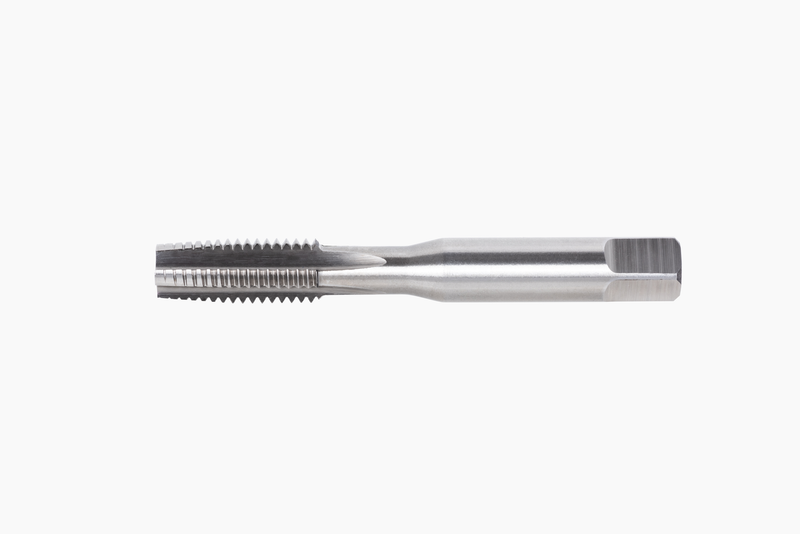

E559M8X1.0NO1
E559M8X1.0NO1
E559M8X1.0NO1

E559M8X1.0NO1

UGC DOR8522434
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$10.93 CAD - $10.93 CAD
$10.93 CAD
$10.93 CAD - $10.93 CAD
$10.93 CAD

Vendu en lots de : 1

Taille du filetage MF8 mm x 1 mm, avec une classe de tolérance de filetage de 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M8X1.0NO1
GradeLumineux
Product Number8522434
Product FamilyE559NO1(MF)
Dimensions
Overall Length — mm (OAL)69.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)32.0 mm
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — mm (TD)8.0 mm
Thread Form (THFT)MF - Métrique fine
Thread Pitch — mm (TP)1.0 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522434
EAN3603607151150
File Type Download
E559M8X1.0NO1 — Line Drawing PDF Download
