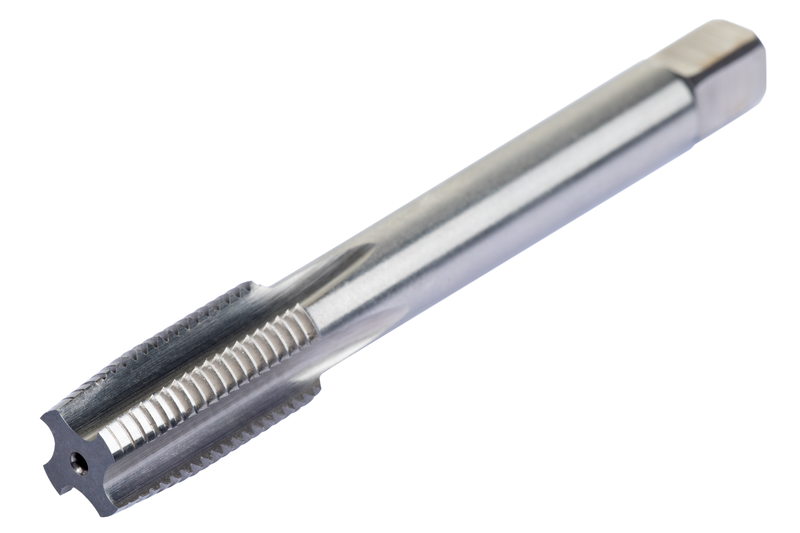

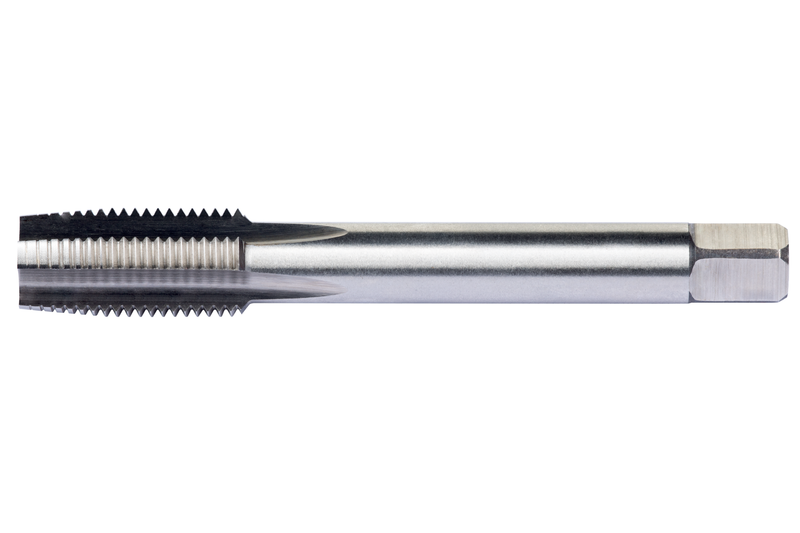

E559M12X1.25NON1
E559M12X1.25NON1
E559M12X1.25NON1

E559M12X1.25NON1

UGC DOR8522438
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.69 CAD - $17.69 CAD
$17.69 CAD
$17.69 CAD - $17.69 CAD
$17.69 CAD

Vendu en lots de : 1

Filetage MF12 mm x 1,25 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M12X1.25NO1
GradeLumineux
Product Number8522438
Product FamilyE559NO1(MF)
Dimensions
Overall Length — mm (OAL)84.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)MF - Pas fin
Thread Pitch — mm (TP)1.25 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522438
EAN3603607151198
File Type Download
E559M12X1.25NON1 — Line Drawing PDF Download
