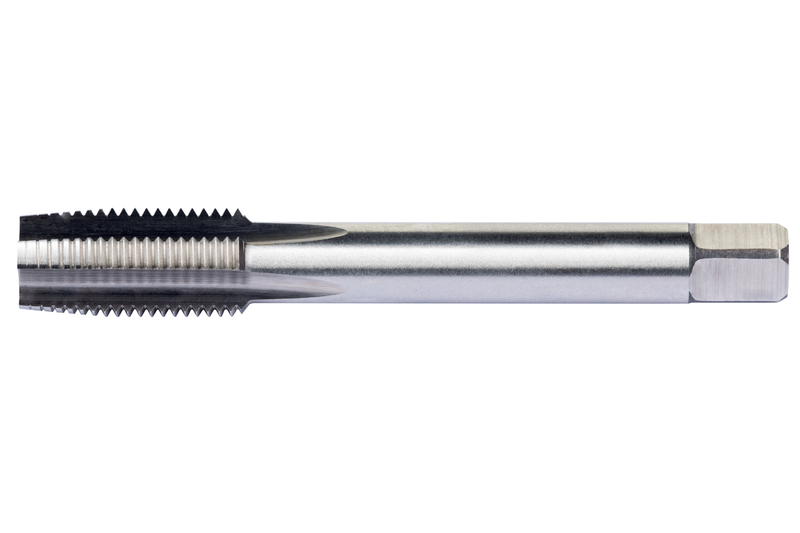

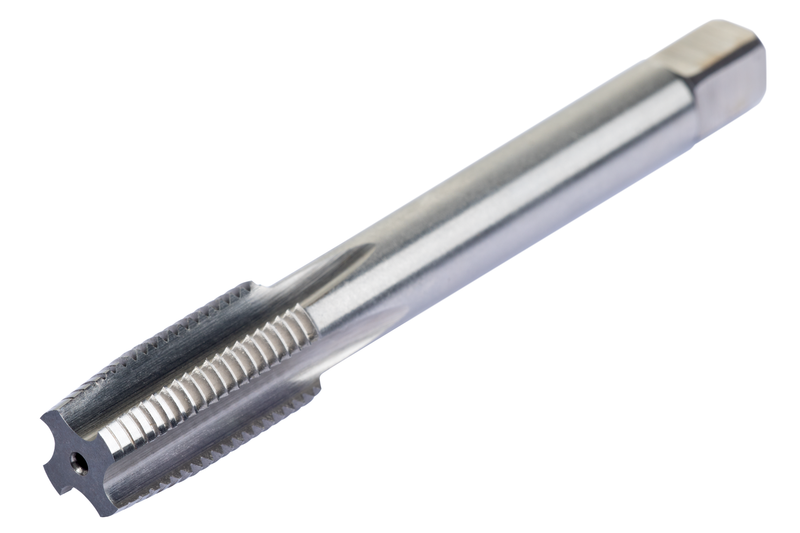

E559M14X1.5NO1
E559M14X1.5NO1
E559M14X1.5NO1

E559M14X1.5NO1

UGC DOR8522440
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$23.04 CAD - $23.04 CAD
$23.04 CAD
$23.04 CAD - $23.04 CAD
$23.04 CAD

Vendu en lots de : 1

Taille du filetage MF14 mm x 1,5 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M14X1.5NO1
GradeLumineux
Product Number8522440
Product FamilyE559NO1(MF)
Dimensions
Overall Length — mm (OAL)95.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)14
Thread Diameter — mm (TD)14.0 mm
Thread Form (THFT)MF - Filetage fin métrique
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522440
EAN3603607151211
File Type Download
E559M14X1.5NO1 — Line Drawing PDF Download
