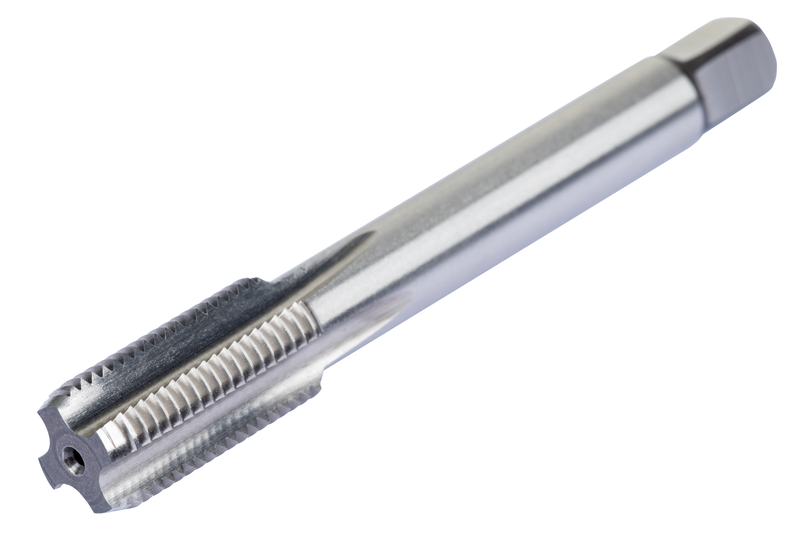

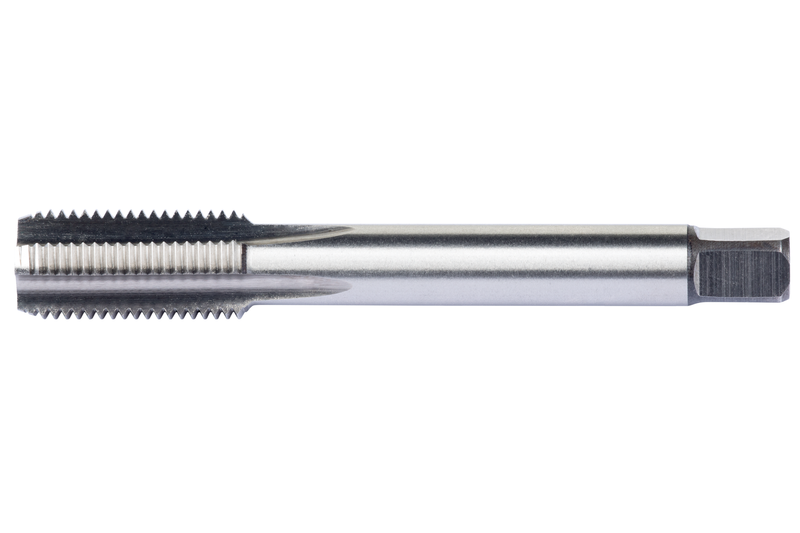

E559M12X1.5NO3
E559M12X1.5NO3
E559M12X1.5NO3

E559M12X1.5NO3

UGC DOR8522455
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$17.61 CAD - $17.61 CAD
$17.61 CAD
$17.61 CAD - $17.61 CAD
$17.61 CAD

Vendu en lots de : 1

Taille du filetage MF12 mm x 1,5 mm, avec classe de tolérance du filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M12X1.5NO3
GradeLumineux
Product Number8522455
Product FamilyE559NO3(FM)
Dimensions
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522455
EAN3603607151365
File Type Download
E559M12X1.5NO3 — Line Drawing PDF Download
