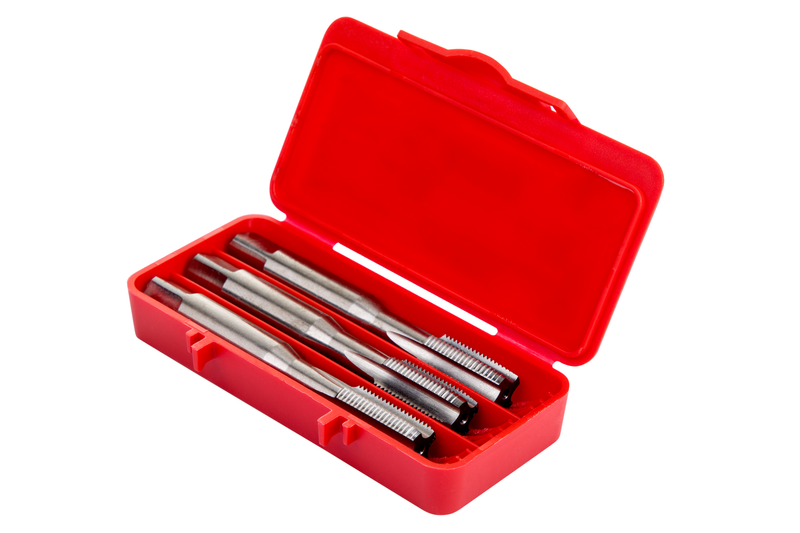

E559M8X1.0NO6
E559M8X1.0NO6

E559M8X1.0NO6

UGC DOR8522458
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$32.86 CAD - $32.86 CAD
$32.86 CAD
$32.86 CAD - $32.86 CAD
$32.86 CAD

Vendu en lots de : 1

Filetage MF8 mm x 1 mm, avec tolérance de filetage classe 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M8X1.0NO6
GradeLumineux
Product Number8522458
Product FamilyE559NO6(MF)
Dimensions
Overall Length — mm (OAL)69.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)32.0 mm
Connection Dia. — mm (DCON)8.0 mm
Number of Flutes (NOF)3
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)8
Thread Diameter — mm (TD)8.0 mm
Thread Form (THFT)MF - Filetage métrique fin
Thread Pitch — mm (TP)1.0 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522458
EAN3603607151396
File Type Download
E559M8X1.0NO6 — Line Drawing PDF Download
