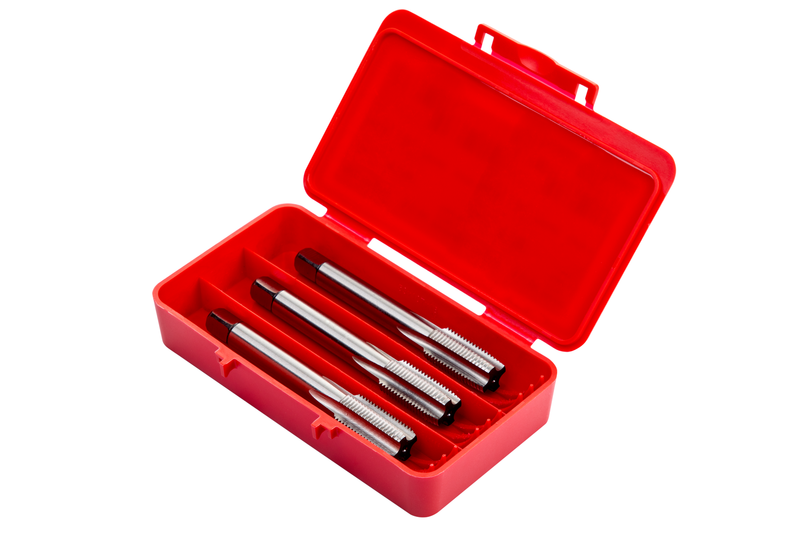

E559M14X1.5NO6
E559M14X1.5NO6

E559M14X1.5NO6

UGC DOR8522464
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$69.21 CAD - $69.21 CAD
$69.21 CAD
$69.21 CAD - $69.21 CAD
$69.21 CAD

Vendu en lots de : 1

Filetage MF14 mm x 1,5 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M14X1.5NO6
GradeLumineux
Product Number8522464
Product FamilyE559NO6(FM)
Dimensions
Overall Length — mm (OAL)95.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)11.2 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)14
Thread Diameter — mm (TD)14.0 mm
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522464
EAN3603607151457
File Type Download
E559M14X1.5NO6 — Line Drawing PDF Download
