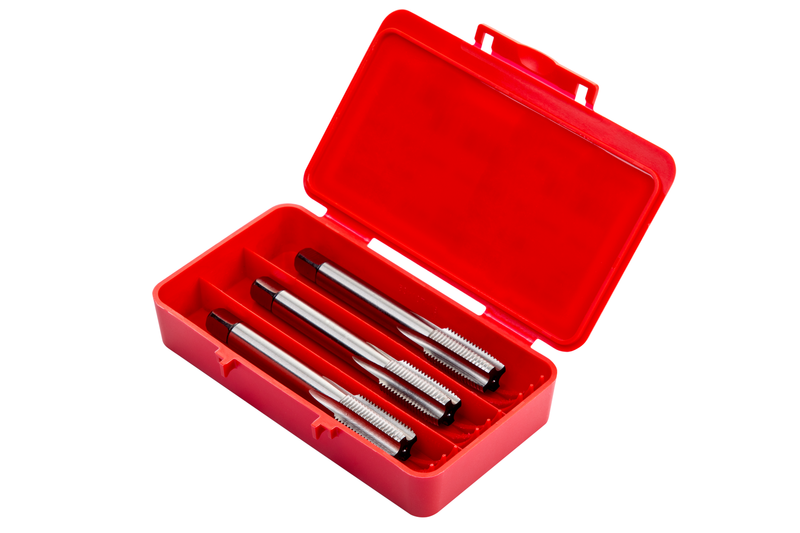

E559M16X1.5NO6
E559M16X1.5NO6

E559M16X1.5NO6

UGC DOR8522465
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$79.29 CAD - $79.29 CAD
$79.29 CAD
$79.29 CAD - $79.29 CAD
$79.29 CAD

Vendu en lots de : 1

Taille du filetage MF16 mm x 1,5 mm, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M16X1.5NO6
GradeLumineux
Product Number8522465
Product FamilyE559NO6(MF)
Dimensions
Overall Length — mm (OAL)102.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)12.5 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)16
Thread Diameter — mm (TD)16.0 mm
Thread Form (THFT)MF - Pas fin métrique
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522465
EAN3603607151464
File Type Download
E559M16X1.5NO6 — Line Drawing PDF Download
For in stock items, please refer to our shipping page for rates and transit times. If in a stocking warehouse, your order will arrive within the estimated delivery timeframe displayed above.

In the event of a delay, our customer service team will contact you with updated details and provide the option to cancel if the product cannot be delivered within the expected timeframe.
