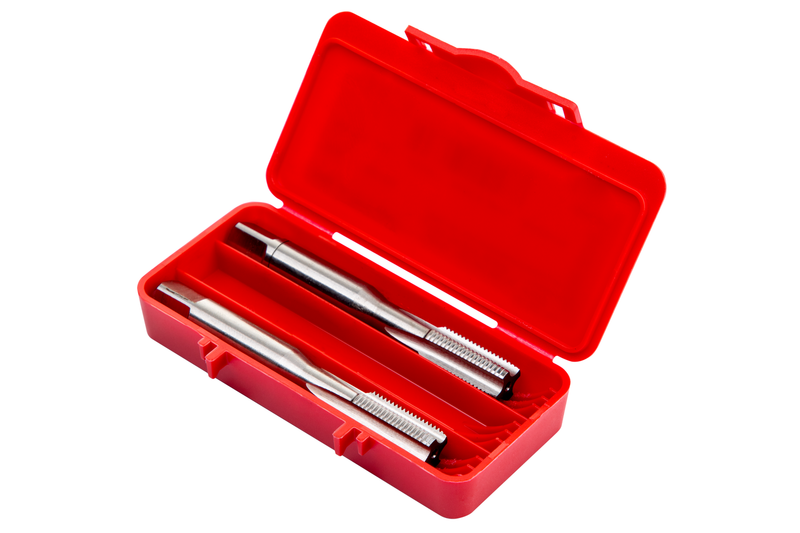

E559M10X1.0NO9
E559M10X1.0NO9

E559M10X1.0NO9

UGC DOR8522467
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$25.71 CAD - $25.71 CAD
$25.71 CAD
$25.71 CAD - $25.71 CAD
$25.71 CAD

Vendu en lots de : 1

Diamètre de filetage MF10 mm x 1 mm, avec tolérance de filetage classe 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559M10X1.0NO9
GradeLumineux
Product Number8522467
Product FamilyE559NO9(MF)
Dimensions
Overall Length — mm (OAL)76.0 mm
Length × Diameter Ratio1.5
Usable Length — mm (LU)35.0 mm
Connection Dia. — mm (DCON)10.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)10
Thread Diameter — mm (TD)10.0 mm
Thread Form (THFT)MF - Métrique fin
Thread Pitch — mm (TP)1.0 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522467
EAN3603607151488
File Type Download
E559M10X1.0NO9 — Line Drawing PDF Download
