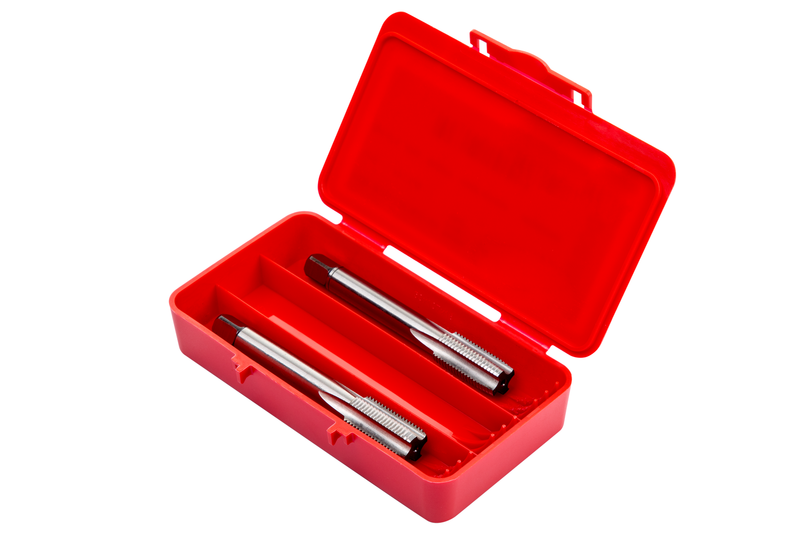

E559M12X1.5O9
E559M12X1.5O9

E559M12X1.5O9

UGC DOR8522471
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$35.21 CAD - $35.21 CAD
$35.21 CAD
$35.21 CAD - $35.21 CAD
$35.21 CAD

Vendu en lots de : 1

Filetage MF12 mm x 1,5 mm, avec une classe de tolérance de filetage de 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI)E559M12X1.5NO9
Product Name (ISO)E559M12X1.5OUI9
GradeLumineux
Product Number8522471
Product FamilyE559NO9(MF)
Dimensions
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)12
Thread Diameter — mm (TD)12.0 mm
Thread Form (THFT)MF - Pas fin (métrique)
Thread Pitch — mm (TP)1.5 mm
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522471
EAN3603607151525
File Type Download
E559M12X1.5O9 — Line Drawing PDF Download
