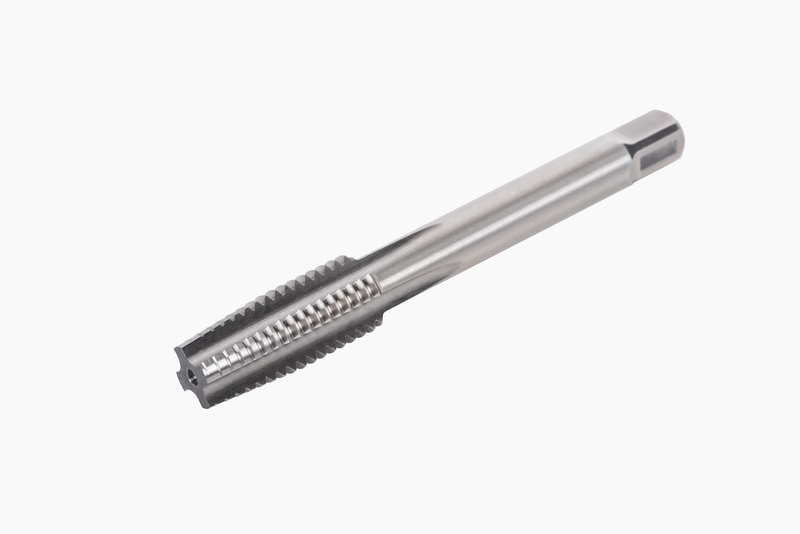

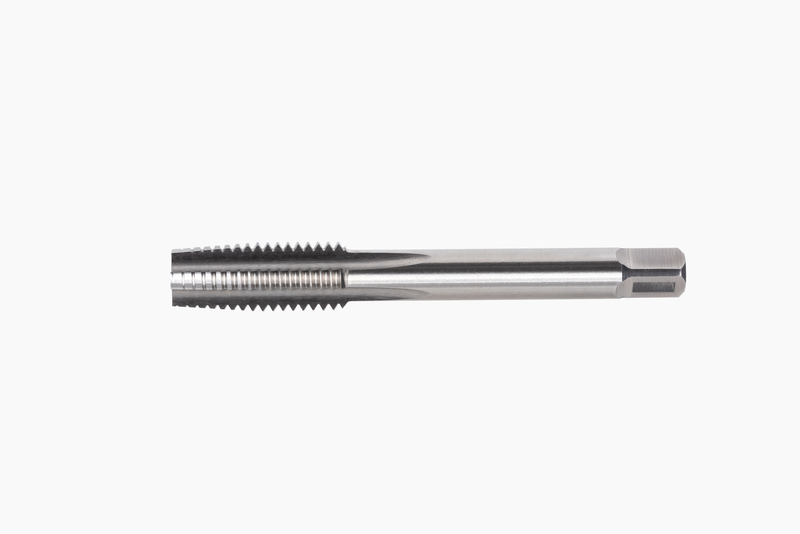

E559UNC1/2NO1
E559UNC1/2NO1
E559UNC1/2NO1

E559UNC1/2NO1

UGC DOR8522478
par Dormer Pramet
Primary Use: Possible Use:
Availability in Distribution Centers:
🔗 Check Stock - ADC Warehouse (1-3 Day Delivery)
🔗 Check Stock - EDC Warehouse (4-10 Day Delivery)
For more information about this product, click here
$14.54 CAD - $14.54 CAD
$14.54 CAD
$14.54 CAD - $14.54 CAD
$14.54 CAD

Vendu en lots de : 1

Taille du filetage UNC 0,5 pouce - 12 filets par pouce, avec classe de tolérance de filetage 93707.

For more information about this product, click here

Identification
Ordering Code (ANSI/ISO)E559UNC1/2NO1
GradeLumineux
Product Number8522478
Product FamilyE559NO1(RDA)

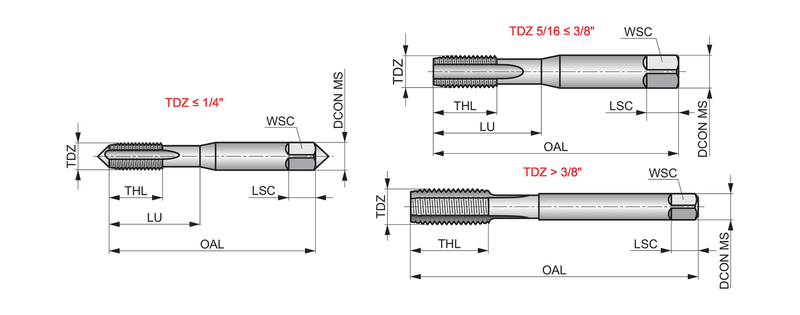

Dimensions
Overall Length — mm (OAL)89.0 mm
Length × Diameter Ratio1.5
Connection Dia. — mm (DCON)9.0 mm
Number of Flutes (NOF)4
Helix Angle (FHA)0.0°
Threading
Thread Diameter Size (TDZ)1/2
Thread Diameter — mm (TD)12.7 mm
Thread Form (THFT)CNU - Coarse Non Uniforme
Threads per Inch (TPI)12.0
Tool Information
Direction of ToolD'accord
StandardISO 529
Reference Numbers
EDP Number8522478
EAN3603607151594
File Type Download
E559UNC1/2NO1 — Line Drawing PDF Download
